ZD11S

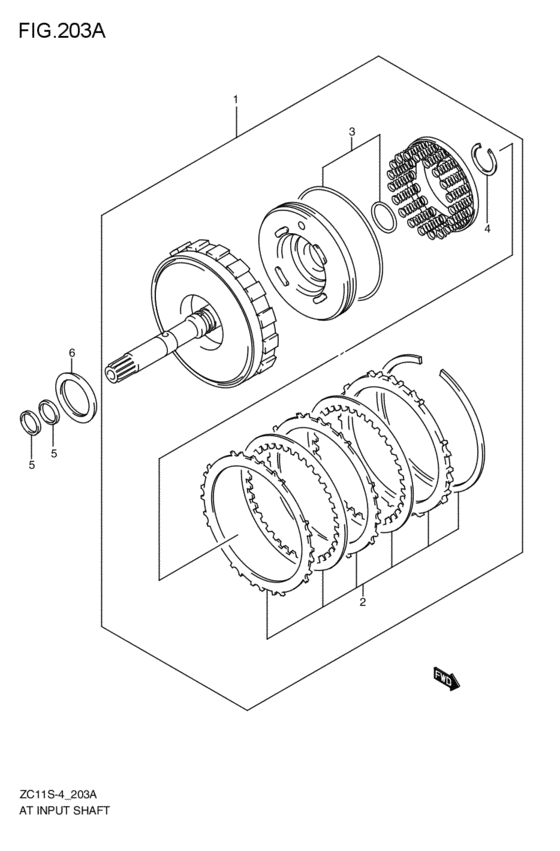

at - input shaft (AT; 2009-02-01~) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 24110-68J10-000 | CLUTCH ASSY,DIRECT MULT DISC |
| 2 | 24121-68JT0-000 | DISC SET,DIRECT CLUTCH |
| 3 | 26682-79CT0-000 | O-ring set,direct cl |
| 3 | 26682-77MT0-000 | O-RING SET,DIRECT CL |
| 4 | 26693-79C10-000 | RING,DIRECT CL SPRING |
| 5 | 24161-79C10-000 | RING,INPUT SHAFT SEAL |
| 6 | 24962-79CT0-000 | BEARING SET,INPUT SHAFT |
| OEM | Part name | Category |
|---|---|---|
| 24110-68J10-000 | CLUTCH ASSY,DIRECT MULT DISC | at - input shaft (AT; 2009-02-01~) |
| 24121-68JT0-000 | DISC SET,DIRECT CLUTCH | at - input shaft (AT; 2009-02-01~) |
| 24161-79C10-000 | RING,INPUT SHAFT SEAL | at - input shaft (AT; 2009-02-01~) |
| 24962-79CT0-000 | BEARING SET,INPUT SHAFT | at - input shaft (AT; 2009-02-01~) |
| 26682-77MT0-000 | O-RING SET,DIRECT CL | at - input shaft (AT; 2009-02-01~) |
| 26682-79CT0-000 | O-ring set,direct cl | at - input shaft (AT; 2009-02-01~) |
| 26693-79C10-000 | RING,DIRECT CL SPRING | at - input shaft (AT; 2009-02-01~) |
