Search › Model › ZCT15

ZCT15

Toyota OPA · 2000 · 4,584 parts · 211 categories
ZCT15 ×

← Back to categories

4,584 items

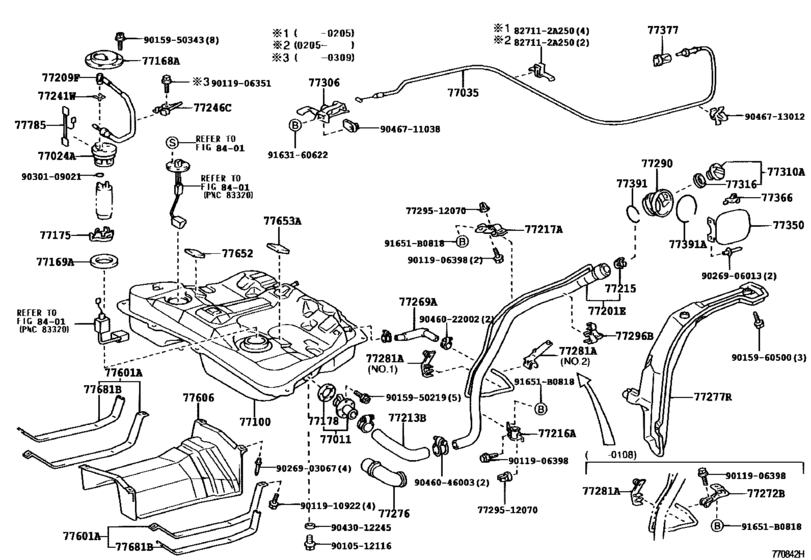

Fuel Tank & Tube ([04.2000 - ] (0004- )ZCT15) 74
#OEMPart name
77011 77011-63010 Pipe Sub-Assy, Fuel Tank Filler, Lower
77024 77024-42020 Plate Sub-Assy, Fuel Suction
77035 77035-63010 Cable Sub-Assy, Fuel Lid Lock Control
77035 77035-63020 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-32140 Tank Assy, Fuel
77100 77001-20820 Tank Assy, Fuel
77168 77168-52010 Plate, Fuel Tank Vent Tube Set
77169 77169-33020 Gasket, Fuel Pump Bracket
77175 77175-52020 Support, Fuel Suction, No.2
77178 77178-20030 Gasket, Fuel Tank Filler Pipe, Lower
77201 77201-63020 Pipe Sub-Assy, Fuel Tank Filler
77209 77209-32030 Tube Sub-Assy, Fuel Tank Main
77213 77213-63010 Hose, Fuel Tank To Filler Pipe
77215 77215-51010 Plate, Fuel Tank Filler Pipe Flange
77216 77216-32060 Support, Fuel Tank Filler Pipe, No.1
77216 77216-32070 Support, Fuel Tank Filler Pipe, No.1
77217 77217-32050 Support, Fuel Tank Filler Pipe, No.2
77217 77217-32060 Support, Fuel Tank Filler Pipe, No.2
77241 77241-32060 Clip, Tube Joint
77246 77246-21010 Support, Fuel Main Tube
77246 77246-63010 Support, Fuel Main Tube
77269 77269-32010 Hose, Fuel Tank Breather
77272 77272-32040 Support, Breather Tube, No.1
77272 77272-32050 Support, Breather Tube, No.1
77276 77276-12050 Protector, Fuel Hose
77276 77276-12120 Protector, Fuel Hose
77276 77276-12130 Protector, Fuel Hose
77277 77277-32080 Protector, Fuel Tank Filler Pipe
77281 77281-12070 Clamp, Fuel Filler Pipe
77281 77281-32040 Bracket, Fuel Main Tube, No.1
77290 77291-63010 Shield Assy, Fuel Tank Filler Pipe
77296 77296-32020 Support, Fuel Tube Protector, No.1
77296 77296-32021 Support, Fuel Tube Protector, No.1
77306 77306-21010 Lever Sub-Assy, Fuel Lid Lock Open
77310 77310-48010 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-63010 Lid Assy, Fuel Filler Opening
77366 77360-21010 Spring, Fuel Filler Opening Lid Hinge
77366 77360-35010 Spring, Fuel Filler Opening Lid Hinge
77377 77377-12050 Bracket, Fuel Lid Lock Control
77391 77391-12020 Ring, Fuel Inlet Box
77391 77391-63010 Ring, Fuel Inlet Box
77601 77601-32110 Band Sub-Assy, Fuel Tank, No.1
77601 77601-20290 Band Sub-Assy, Fuel Tank, No.1 Rh
77606 77606-32040 Protector Sub-Assy, Fuel Tank, No.1
77606 77606-32041 Protector Sub-Assy, Fuel Tank, No.1
77652 77651-20090 Cushion, Fuel Tank, No.1
77653 77653-60020 Cushion, Fuel Tank, No.3
77653 77653-60060 Cushion, Fuel Tank, No.3
77681 77681-32060 Seat, Fuel Tank Band, Rh
77785 77785-32010 Harness, Fuel Pump
91651 91651-B0818 BOLT WWASHER
827112 82711-2A250 Clamp (For Fuel Lid Lock Control Cable)
7729512070 77295-12070 Grommet, Fuel Tube
9010512116 90105-12116 Plug(For Fuel Tank)
9011906351 90119-06351 New Genuine Part
9011906398 90119-06398 BOLT WWASHER
9011910922 90119-10922 BOLT WWASHER
9011910922 90080-11654 New Genuine Part
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9015950343 90159-50343 SCREW, W-WASHER
9015960500 90159-60500 SCREW WWASHER
9026903067 90269-03067 RIVET
9026906013 90269-06013 RIVET
9030109021 90301-09021 GASKET
9043012245 90430-12245 Gasket(For Fuel Tank)
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046711038 90467-11038 CLAMP
9046713012 90467-13012 New Genuine Part
9163160622 91631-60622 Screw
