ZCT10

Toyota OPA · 2000 · 4,086 parts · 203 categories

← Back to categories

4,086 items

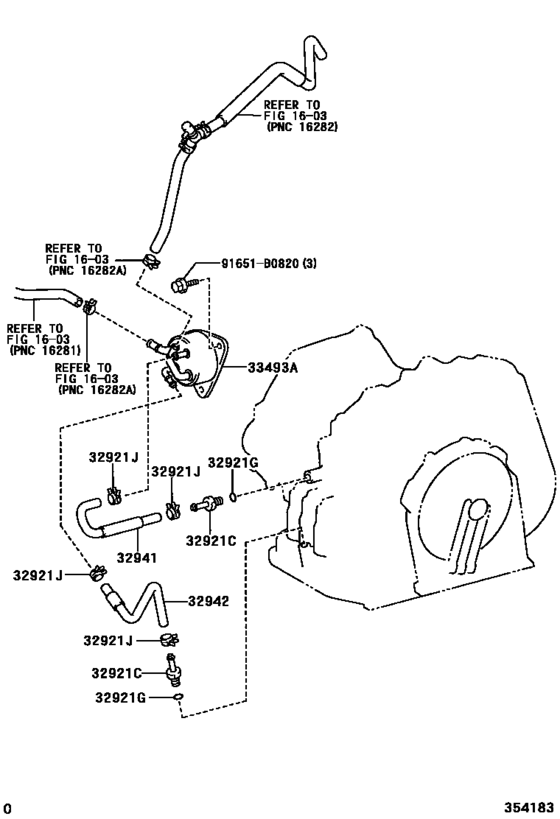

Oil Cooler & Tube (Atm) ([12.2002 - ] U341E (0212- )ZCT10) 15

#	OEM	Part name
32921	90404-13004	Union(For Oil Cooler Tube)
32921	90404-13010	Union(For Oil Cooler Tube)
32921	90404-16031	Union(For Transaxle Housing)
32921	90407-16010	Union(For Oil Cooler Tube)
32921	90301-10189	Ring, O(For Oil Cooler Tube Union)
32921	90467-16013	Clip(For Oil Return Hose)
32921	90467-16022	Clip(For Water Inlet Hose)
32941	32941-20210	Hose, Oil Cooler Inlet, No.1
32941	32941-68010	Hose, Oil Cooler Inlet, No.1
32942	32942-20060	Hose, Oil Cooler Outlet, No.1
32942	32942-68010	Hose, Oil Cooler Outlet, No.1
33493	33493-20020	Cooler, Transmission Oil
33493	33493-20021	Cooler, Transmission Oil
91651	91651-B0820	Bolt, Radiator Side Support Plate
91651	90080-11347	New Genuine Part

OEM	Part name	Category
32941-20210	Hose, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([12.2002 - ] U341E (0212- )ZCT10)
32941-68010	Hose, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([12.2002 - ] U341E (0212- )ZCT10)
32942-20060	Hose, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([12.2002 - ] U341E (0212- )ZCT10)
32942-68010	Hose, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([12.2002 - ] U341E (0212- )ZCT10)
33493-20020	Cooler, Transmission Oil	Oil Cooler & Tube (Atm) ([12.2002 - ] U341E (0212- )ZCT10)
33493-20021	Cooler, Transmission Oil	Oil Cooler & Tube (Atm) ([12.2002 - ] U341E (0212- )ZCT10)
90080-11347	New Genuine Part	Oil Cooler & Tube (Atm) ([12.2002 - ] U341E (0212- )ZCT10)
90301-10189	Ring, O(For Oil Cooler Tube Union)	Oil Cooler & Tube (Atm) ([12.2002 - ] U341E (0212- )ZCT10)
90404-13004	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([12.2002 - ] U341E (0212- )ZCT10)
90404-13010	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([12.2002 - ] U341E (0212- )ZCT10)
90404-16031	Union(For Transaxle Housing)	Oil Cooler & Tube (Atm) ([12.2002 - ] U341E (0212- )ZCT10)
90407-16010	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([12.2002 - ] U341E (0212- )ZCT10)
90467-16013	Clip(For Oil Return Hose)	Oil Cooler & Tube (Atm) ([12.2002 - ] U341E (0212- )ZCT10)
90467-16022	Clip(For Water Inlet Hose)	Oil Cooler & Tube (Atm) ([12.2002 - ] U341E (0212- )ZCT10)
91651-B0820	Bolt, Radiator Side Support Plate	Oil Cooler & Tube (Atm) ([12.2002 - ] U341E (0212- )ZCT10)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 203
Collected: 2026-08-04
