ZCA26

Toyota RAV4-VANGUARD · 2000 · 5,014 parts · 259 categories

← Back to categories

5,014 items

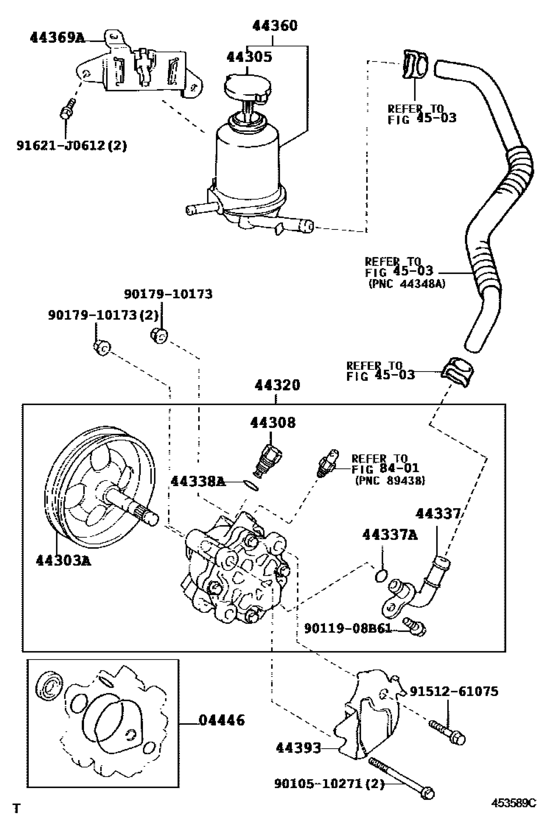

Vane Pump & Reservoir (Power Steering) ([07.2003 - ] (0307- )ZCA2#) 18

#	OEM	Part name
4446	04446-32050	Gasket Kit, Power Steering Pump
44303	44303-32010	Shaft Sub-Assy, W/pulley
44305	44305-28030	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-28061	Cap Sub-Assy, Vane Pump Oil Reservoir
44308	44308-42020	Union Sub-Assy, Pressure Port
44320	44310-42080	Pump Assy, Vane
44337	44337-42010	Union, Power Steering Suction Port
44337	90301-11020	Ring, O, No.1(For Vane Pump Housing)
44338	90301-18009	Ring, O(For Pressure Port Union)
44360	44360-42030	Reservoir Assy, Vane Pump Oil
44369	44390-42040	Bracket, Oil Reservoir, No.1
44393	44393-42010	Insulator, Power Steering Pump Heat
44393	44393-63010	Insulator, Power Steering Pump Heat
91621	91621-J0612	BOLT W-WASHER
9011908	90119-08B61	New Genuine Part
9010510271	90105-10271	BOLT WASHER BASED
9017910173	90179-10173	NUT
9151261075	91512-61075	New Genuine Part

OEM	Part name	Category
04446-32050	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([07.2003 - ] (0307- )ZCA2#)
44303-32010	Shaft Sub-Assy, W/pulley	Vane Pump & Reservoir (Power Steering) ([07.2003 - ] (0307- )ZCA2#)
44305-28030	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([07.2003 - ] (0307- )ZCA2#)
44305-28061	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([07.2003 - ] (0307- )ZCA2#)
44308-42020	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([07.2003 - ] (0307- )ZCA2#)
44310-42080	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([07.2003 - ] (0307- )ZCA2#)
44337-42010	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([07.2003 - ] (0307- )ZCA2#)
44360-42030	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([07.2003 - ] (0307- )ZCA2#)
44390-42040	Bracket, Oil Reservoir, No.1	Vane Pump & Reservoir (Power Steering) ([07.2003 - ] (0307- )ZCA2#)
44393-42010	Insulator, Power Steering Pump Heat	Vane Pump & Reservoir (Power Steering) ([07.2003 - ] (0307- )ZCA2#)
44393-63010	Insulator, Power Steering Pump Heat	Vane Pump & Reservoir (Power Steering) ([07.2003 - ] (0307- )ZCA2#)
90105-10271	BOLT WASHER BASED	Vane Pump & Reservoir (Power Steering) ([07.2003 - ] (0307- )ZCA2#)
90119-08B61	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([07.2003 - ] (0307- )ZCA2#)
90179-10173	NUT	Vane Pump & Reservoir (Power Steering) ([07.2003 - ] (0307- )ZCA2#)
90301-11020	Ring, O, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([07.2003 - ] (0307- )ZCA2#)
90301-18009	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([07.2003 - ] (0307- )ZCA2#)
91512-61075	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([07.2003 - ] (0307- )ZCA2#)
91621-J0612	BOLT W-WASHER	Vane Pump & Reservoir (Power Steering) ([07.2003 - ] (0307- )ZCA2#)
