Search › Model › ZCA26

ZCA26

Toyota RAV4-VANGUARD · 2000 · 5,014 parts · 259 categories

5,014 items

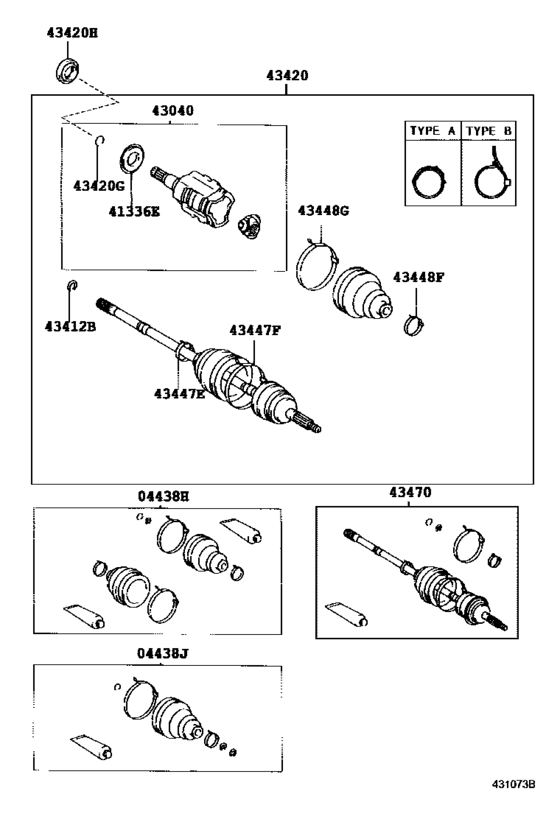

Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#) 29

#	OEM	Part name
4438	04428-42080	Boot Kit, Front Drive Shaft, In & Outboard, Lh
4438	04438-42100	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04438-42102	Front Drive Shaft Boot Kit, In and Outboard
4438	04438-42090	Boot Kit, Front Drive Shaft Inboard Joint, Rh
4438	04438-42190	Boot Kit, Front Drive Shaft Inboard Joint, Rh
4438	04438-42091	Boot Kit, Front Drive Shaft Inboard Joint, Rh
41336	41336-32020	Cover, Dust(For Differential Side Gear Shaft)
43040	43040-42030	Joint Assy, Front Drive Inboard, Lh
43040	43040-42031	Joint Assy, Front Drive Inboard, Lh
43412	43425-28010	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)
43420	43420-42100	Shaft Assy, Front Drive, Lh
43420	43420-42110	Shaft Assy, Front Drive, Lh
43420	90521-27005	Ring, Hole Snap (For Rear Differential Side Gear Shaft)
43420	90311-35044	Oil Seal, Rear Drive Shaft, Lh
43420	90311-35064	Oil Seal, Rear Drive Shaft, Lh
43420	90311-35058	Oil Seal, Rear Drive Shaft, Lh
43447	42345-20040	Clamp (For Front Axle Outboard Joint Boot Rh)
43447	42345-42100	Clamp (For Front Axle Outboard Joint Boot) - Small
43447	42345-28020	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
43447	42345-42090	Clamp, No.2 (For Front Axle Outboard Joint Boot) - Big
43448	42345-42010	Clamp (For Axle Inboard Joint Boot) - Small
43448	90949-01559	Clamp, No.1 (For Axle Outboard Joint Boot Setting)
43448	42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big
43448	90949-01076	Clamp (For Rear Drive Shaft Outboard Joint Boot)
43470	43470-49145	Shaft Assy, Front Drive Outboard Joint, Lh
43470	43470-49146	Shaft Assy, Front Drive Outboard Joint, Rh
43470	43470-49175	Shaft Assy, Front Drive Outboard Joint, Lh
43470	43470-49176	Shaft Assy, Front Drive Outboard Joint, Rh - FRONT DRIVE OUTBOARD JOINT, LH
43470	43470-80081	Shaft Assy, Front Drive Outboard Joint, Lh

OEM	Part name	Category
04428-42080	Boot Kit, Front Drive Shaft, In & Outboard, Lh	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
04438-42090	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
04438-42091	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
04438-42100	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
04438-42102	Front Drive Shaft Boot Kit, In and Outboard	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
04438-42190	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
41336-32020	Cover, Dust(For Differential Side Gear Shaft)	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
42345-20040	Clamp (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
42345-28020	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
42345-42010	Clamp (For Axle Inboard Joint Boot) - Small	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
42345-42090	Clamp, No.2 (For Front Axle Outboard Joint Boot) - Big	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
42345-42100	Clamp (For Front Axle Outboard Joint Boot) - Small	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
43040-42030	Joint Assy, Front Drive Inboard, Lh	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
43040-42031	Joint Assy, Front Drive Inboard, Lh	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
43420-42100	Shaft Assy, Front Drive, Lh	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
43420-42110	Shaft Assy, Front Drive, Lh	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
43425-28010	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
43470-49145	Shaft Assy, Front Drive Outboard Joint, Lh	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
43470-49146	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
43470-49175	Shaft Assy, Front Drive Outboard Joint, Lh	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
43470-49176	Shaft Assy, Front Drive Outboard Joint, Rh - FRONT DRIVE OUTBOARD JOINT, LH	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
43470-80081	Shaft Assy, Front Drive Outboard Joint, Lh	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
90311-35044	Oil Seal, Rear Drive Shaft, Lh	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
90311-35058	Oil Seal, Rear Drive Shaft, Lh	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
90311-35064	Oil Seal, Rear Drive Shaft, Lh	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
90521-27005	Ring, Hole Snap (For Rear Differential Side Gear Shaft)	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
90949-01076	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
90949-01559	Clamp, No.1 (For Axle Outboard Joint Boot Setting)	Front Drive Shaft ([05.2000 - ] LH (0005- )ZCA2#)
