ZCA26

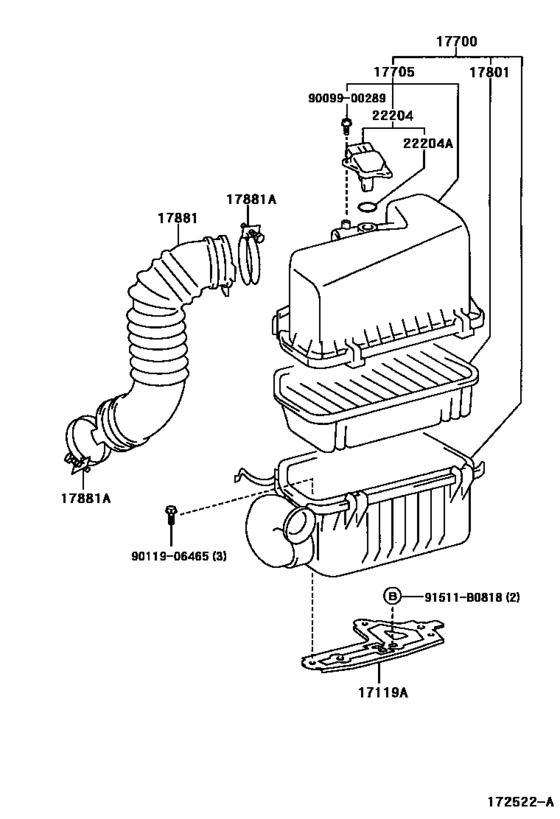

Air Cleaner ([05.2000 - ] (0005- )1ZZFE) 11
| # | OEM | Part name |
|---|---|---|
| 17119 | 17119-22050 | Bracket, Air Cleaner |
| 17700 | 17700-22110 | Cleaner Assy, Air |
| 17705 | 17705-22110 | Cap Sub-Assy, Air Cleaner |
| 17801 | 17801-70050 | Element Sub-Assy, Air Cleaner Filter |
| 17881 | 17881-22060 | Hose, Air Cleaner, No.1 |
| 17881 | 96111-10830 | Clamp, Hose(For Air Connector) |
| 22204 | 22204-22010 | Meter Sub-Assy, Intake Air Flow |
| 22204 | 90099-14141 | Ring, O(For Intake Air Flow Meter) |
| 91511 | 91511-B0818 | BOLT FLANGE |
| 9009900289 | 90099-00289 | SCREW |
| 9011906465 | 90119-06465 | BOLT |
| OEM | Part name | Category |
|---|---|---|
| 17119-22050 | Bracket, Air Cleaner | Air Cleaner ([05.2000 - ] (0005- )1ZZFE) |
| 17700-22110 | Cleaner Assy, Air | Air Cleaner ([05.2000 - ] (0005- )1ZZFE) |
| 17705-22110 | Cap Sub-Assy, Air Cleaner | Air Cleaner ([05.2000 - ] (0005- )1ZZFE) |
| 17801-70050 | Element Sub-Assy, Air Cleaner Filter | Air Cleaner ([05.2000 - ] (0005- )1ZZFE) |
| 17881-22060 | Hose, Air Cleaner, No.1 | Air Cleaner ([05.2000 - ] (0005- )1ZZFE) |
| 22204-22010 | Meter Sub-Assy, Intake Air Flow | Air Cleaner ([05.2000 - ] (0005- )1ZZFE) |
| 90099-00289 | SCREW | Air Cleaner ([05.2000 - ] (0005- )1ZZFE) |
| 90099-14141 | Ring, O(For Intake Air Flow Meter) | Air Cleaner ([05.2000 - ] (0005- )1ZZFE) |
| 90119-06465 | BOLT | Air Cleaner ([05.2000 - ] (0005- )1ZZFE) |
| 91511-B0818 | BOLT FLANGE | Air Cleaner ([05.2000 - ] (0005- )1ZZFE) |
| 96111-10830 | Clamp, Hose(For Air Connector) | Air Cleaner ([05.2000 - ] (0005- )1ZZFE) |
