ZCA25

Toyota RAV4-VANGUARD · 2000 · 4,667 parts · 254 categories
ZCA25 ×

← Back to categories

4,667 items

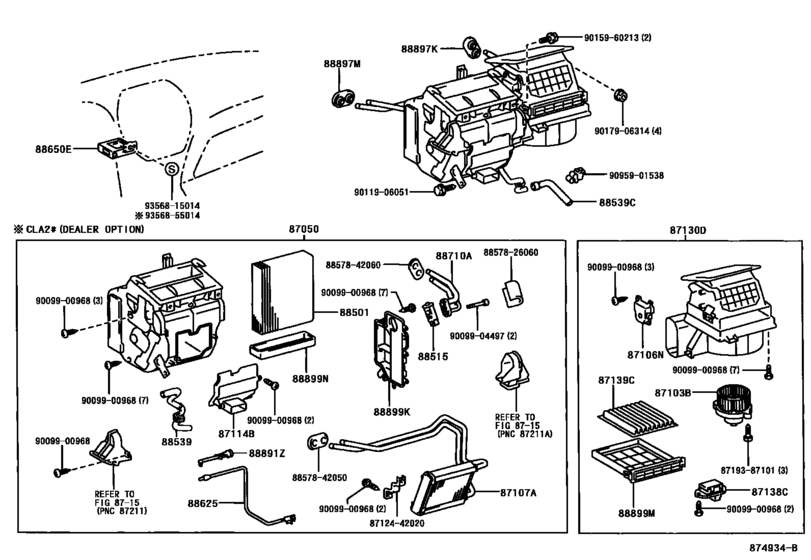

Heating & Air Conditioning - Cooler Unit ([05.2000 - 07.2003] MANUAL AIR CONDITIONER (0005-0307)LHD) 49
#OEMPart name
87050 87050-42050 Radiator Assy, Air Conditioner
87050 87050-42060 Radiator Assy, Air Conditioner
87050 87050-42240 Radiator Assy, Air Conditioner
87050 87050-42080 Radiator Assy, Air Conditioner
87050 87050-42090 Radiator Assy, Air Conditioner
87050 87050-42170 Radiator Assy, Air Conditioner
87050 87050-42230 Radiator Assy, Air Conditioner
87103 87103-42040 Motor Sub-Assy, Blower W/fan
87103 87103-42060 Motor Sub-Assy, Blower W/fan
87106 87106-42050 Servo Sub-Assy, Damper(For Recirculation)
87107 87107-42130 Unit Sub-Assy, Heater Radiator
87114 87114-42060 Cover, Heater
87130 87130-42100 Blower Assy
87130 87130-42150 Blower Assy
87130 87130-42170 Blower Assy
87138 87138-42030 Resistor, Blower
87139 88568-52010 Filter, Clean Air
87139 87139-12010 Filter, Clean Air
88501 88501-42080 Evaporator Sub-Assy, Cooler, No.1
88501 88501-47020 Evaporator Sub-Assy, Cooler, No.1
88515 88515-42070 Valve, Cooler Expansion
88515 88515-42080 Valve, Cooler Expansion
88539 88539-42040 Hose, Cooler Unit Drain, No.1
88539 88539-42030 Hose, Cooler Unit Drain, No.2
88625 88625-42080 Thermistor, Cooler, No.1
88650 88650-42130 Amplifier Assy, Air Conditioner, No.1
88710 88710-42050 Tube Assy, Air Conditioner - AIRCONDITIONER
88891 88891-32100 Bracket, Cooler Thermistor
88897 88897-12240 Grommet, (For Cooler Pipe)
88897 90480-01405 Grommet, Heater Hose
88899 88899-42080 Plate, Cover
88899 88899-42110 Plate, Cover
88899 88899-42090 Plate, Cover(For Air Filter)
88899 88899-47030 Plate, Cover
8712442020 87124-42020 Clamp, Heater
8719387101 87193-87101 SCREW TAPPING
8857826060 88578-26060 Packing, Cooling Unit, No.1
8857826060 88578-41030 Packing, Cooling Unit, No.1
8857842050 88578-42050 Packing, Cooling Unit, No.1
8857842060 88578-42060 Packing, Cooling Unit, No.2
9009900968 90099-00968 Screw(For Air Conditioner Unit)
9009904497 90099-04497 BOLT
9011906051 90119-06051 New Genuine Part
9011906051 90119-06074 Bolt
9015960213 90159-60213 New Genuine Part
9017906314 90179-06314 NUT
9095901538 90959-01538 New Genuine Part
9356815014 93568-15014 Direct
9356815014 93568-55014 Screw
