ZCA25

Toyota RAV4-VANGUARD · 2000 · 4,667 parts · 254 categories

4,667 items

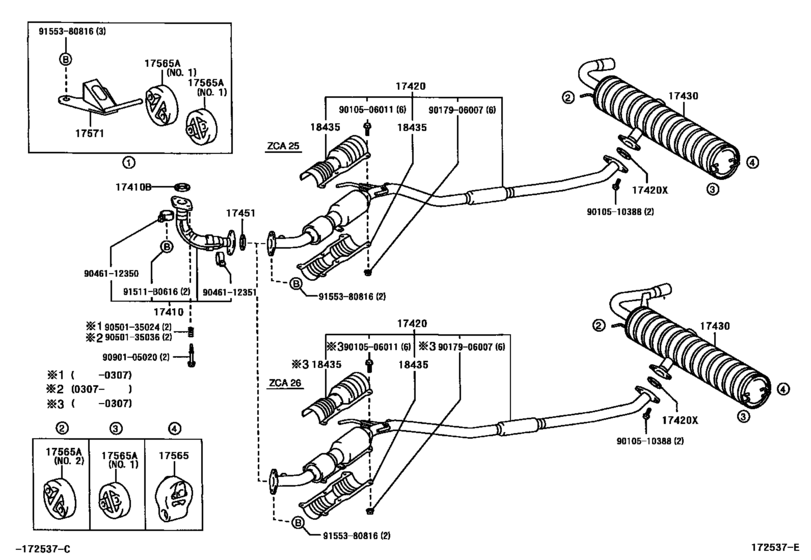

Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE) 25

#	OEM	Part name
17410	17410-22150	Pipe Assy, Exhaust, Front
17410	17451-16030	Gasket, Exhaust Pipe
17420	17420-22020	Pipe Assy, Exhaust, Center
17420	90917-06062	Gasket, Exhaust Pipe
17420	90080-43034	Gasket, Exhaust Pipe
17430	17430-22150	Pipe Assy, Exhaust, Tail
17430	17430-28907	Pipe Assy, Exhaust, Tail
17430	17565-64180	Support, Exhaust Pipe, No.3
17430	17430-22151	Pipe Assy, Exhaust, Tail
17451	90917-06074	Gasket, Exhaust Pipe, Center
17565	17565-15070	Support, Exhaust Pipe, No.3
17565	17565-46040	Support, Exhaust Pipe, No.1
17571	17571-28070	Bracket, Exhaust Pipe Support, No.1
18435	18435-22010	Protector, Catalytic Converter
91511	91511-B0616	BOLT, FLANGE
91511	90080-10164	BOLT, FLANGE
9010506011	90105-06011	BOLT
9010510388	90105-10388	BOLT
9017906007	90179-06007	Nut
9046112350	90461-12350	Clamp, Exhaust Pipe
9046112351	90461-12351	New Genuine Part
9050135024	90501-35024	SPRING COMPRESSION
9050135036	90501-35036	SPRING COMPRESSION
9090105020	90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)
9155380816	91553-80816	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
17410-22150	Pipe Assy, Exhaust, Front	Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE)
17420-22020	Pipe Assy, Exhaust, Center	Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE)
17430-22150	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE)
17430-22151	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE)
17430-28907	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE)
17451-16030	Gasket, Exhaust Pipe	Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE)
17565-15070	Support, Exhaust Pipe, No.3	Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE)
17565-46040	Support, Exhaust Pipe, No.1	Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE)
17565-64180	Support, Exhaust Pipe, No.3	Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE)
17571-28070	Bracket, Exhaust Pipe Support, No.1	Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE)
18435-22010	Protector, Catalytic Converter	Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE)
90080-10164	BOLT, FLANGE	Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE)
90080-43034	Gasket, Exhaust Pipe	Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE)
90105-06011	BOLT	Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE)
90105-10388	BOLT	Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE)
90179-06007	Nut	Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE)
90461-12350	Clamp, Exhaust Pipe	Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE)
90461-12351	New Genuine Part	Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE)
90501-35024	SPRING COMPRESSION	Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE)
90501-35036	SPRING COMPRESSION	Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE)
90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE)
90917-06062	Gasket, Exhaust Pipe	Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE)
90917-06074	Gasket, Exhaust Pipe, Center	Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE)
91511-B0616	BOLT, FLANGE	Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE)
91553-80816	Bolt (For Transmission Control Cable Bracket)	Exhaust Pipe ([05.2000 - ] (0005- )1ZZFE)
