Search › Model › ZCA25
ZCA25

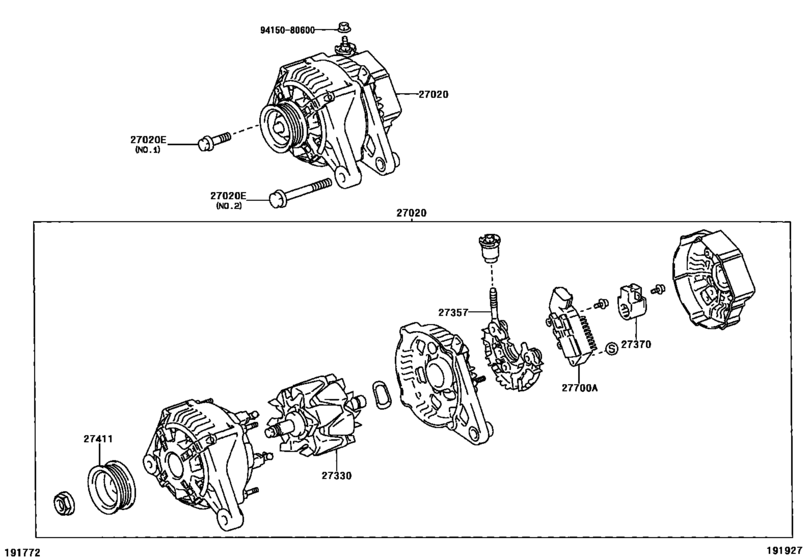

Alternator ([07.2003 - ] 12V 90A (0307- )1ZZFE) 9
| # | OEM | Part name |
|---|---|---|
| 27020 | 27060-22130 | Alternator Assy |
| 27020 | 90105-10075 | Bolt(For Alternator) |
| 27020 | 91511-80830 | Bolt(For Alternator) |
| 27330 | 27330-74550 | Rotor Assy, Alternator |
| 27357 | 27357-22070 | Holder, Alternator, W/rectifier |
| 27370 | 27370-75060 | Holder Assy, Alternator Brush |
| 27411 | 27411-50050 | Pulley, Alternator |
| 27700 | 27700-46060 | Regulator Assy, Generator |
| 9415080600 | 94150-80600 | NUT FLANGE |
| OEM | Part name | Category |
|---|---|---|
| 27060-22130 | Alternator Assy | Alternator ([07.2003 - ] 12V 90A (0307- )1ZZFE) |
| 27330-74550 | Rotor Assy, Alternator | Alternator ([07.2003 - ] 12V 90A (0307- )1ZZFE) |
| 27357-22070 | Holder, Alternator, W/rectifier | Alternator ([07.2003 - ] 12V 90A (0307- )1ZZFE) |
| 27370-75060 | Holder Assy, Alternator Brush | Alternator ([07.2003 - ] 12V 90A (0307- )1ZZFE) |
| 27411-50050 | Pulley, Alternator | Alternator ([07.2003 - ] 12V 90A (0307- )1ZZFE) |
| 27700-46060 | Regulator Assy, Generator | Alternator ([07.2003 - ] 12V 90A (0307- )1ZZFE) |
| 90105-10075 | Bolt(For Alternator) | Alternator ([07.2003 - ] 12V 90A (0307- )1ZZFE) |
| 91511-80830 | Bolt(For Alternator) | Alternator ([07.2003 - ] 12V 90A (0307- )1ZZFE) |
| 94150-80600 | NUT FLANGE | Alternator ([07.2003 - ] 12V 90A (0307- )1ZZFE) |
