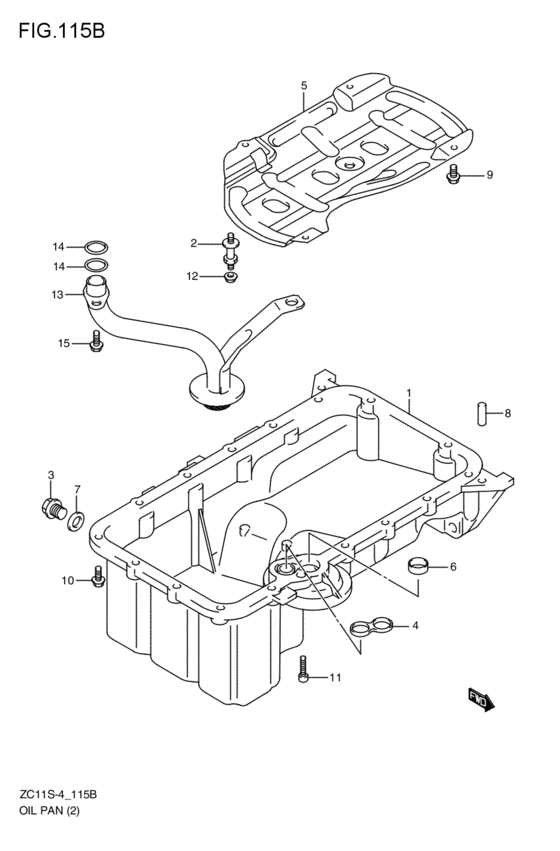

| 01550-0612A-000 |
Bolt |
oil pan (K12B; 2009-02-01~) |
| 01550-0625A-000 |
Bolt |
oil pan (K12B; 2009-02-01~) |
| 07120-0620A-000 |
Bolt |
oil pan (K12B; 2009-02-01~) |
| 07130-0625A-000 |
Bolt |
oil pan (K12B; 2009-02-01~) |
| 08316-1006A-000 |
NUT |
oil pan (K12B; 2009-02-01~) |
| 09168-14015-000 |
GASKET(14X20X1.5) - Gasket, oil hose union |
oil pan (K12B; 2009-02-01~) |
| 09202-08004-000 |
PIN(8X23) |
oil pan (K12B; 2009-02-01~) |
| 09280-17002-000 |
O RING(D:2.4,ID:16.8) - O ring (d:2.4,id:16.8) |
oil pan (K12B; 2009-02-01~) |
| 11511-69L00-000 |
PAN,OIL |
oil pan (K12B; 2009-02-01~) |
| 11511-73K00-000 |
Pan,oil |
oil pan (K12B; 2009-02-01~) |
| 11515-51K01-000 |
Bolt,oil pan baffle stud |
oil pan (K12B; 2009-02-01~) |
| 11515-51K03-000 |
BOLT,OIL PAN BAFFLE STUD |
oil pan (K12B; 2009-02-01~) |
| 11518-63J10-000 |
Plug,Oil Drain |
oil pan (K12B; 2009-02-01~) |
| 11518-69J00-000 |
O-RING,OIL PAN |
oil pan (K12B; 2009-02-01~) |
| 11541-73K00-000 |
Plate,oil pan baffle |
oil pan (K12B; 2009-02-01~) |
| 11541-73K10-000 |
PLATE,OIL PAN BAFFLE |
oil pan (K12B; 2009-02-01~) |
| 16114-69J00-000 |
PIN,OIL PAN DOWEL |
oil pan (K12B; 2009-02-01~) |
| 16520-73K00-000 |
STRAINER,OIL PUMP |
oil pan (K12B; 2009-02-01~) |
