| 01550-0610A-000 |
Bolt |

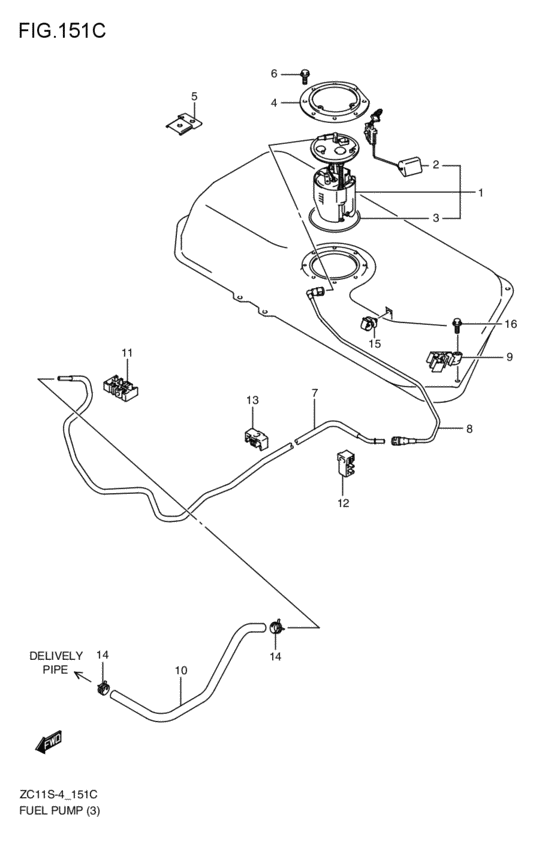

Fuel Pump (K12B; 2009-02-01~) |
| 09401-11420-000 |
CLIP |
Fuel Pump (K12B; 2009-02-01~) |
| 09403-08333-000 |
CLAMP |
Fuel Pump (K12B; 2009-02-01~) |
| 15100-63840-000 |
PUMP ASSY,FUEL |
Fuel Pump (K12B; 2009-02-01~) |
| 15111-80J00-000 |
GASKET,FUEL PUMP |
Fuel Pump (K12B; 2009-02-01~) |
| 15121-61J00-000 |
PLATE,FUEL PUMP |
Fuel Pump (K12B; 2009-02-01~) |
| 15131-63J00-000 |
BRACKET,FUEL TANK EARTH |
Fuel Pump (K12B; 2009-02-01~) |
| 15811-63J00-000 |
PIPE,FUEL |
Fuel Pump (K12B; 2009-02-01~) |
| 15812-63J00-000 |
PIPE,FUEL,PUMP TO PIPE |
Fuel Pump (K12B; 2009-02-01~) |
| 15813-63J00-000 |
CLAMP,FUEL PIPE,TANK SIDE |
Fuel Pump (K12B; 2009-02-01~) |
| 15815-73K00-000 |
ホース,フューエル(パイプツーエンジン) |
Fuel Pump (K12B; 2009-02-01~) |
| 15882-80G00-000 |
CLAMP,FUEL PIPE |
Fuel Pump (K12B; 2009-02-01~) |
| 15893-63J00-000 |
CLAMP,FUEL PIPE |
Fuel Pump (K12B; 2009-02-01~) |
| 15893-83G01-000 |
CLAMP,FUEL PIPE |
Fuel Pump (K12B; 2009-02-01~) |
| 34810-63J00-000 |
GAUGE ASSY,FUEL LEVEL |
Fuel Pump (K12B; 2009-02-01~) |
