Search › Model › ZC31S
ZC31S

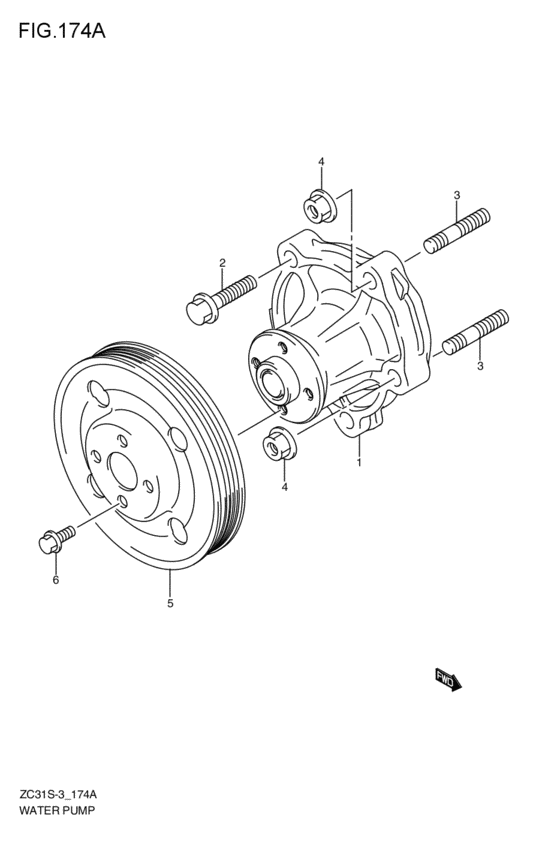

water pump (2009-02-01~) 7
| # | OEM | Part name |
|---|---|---|
| 1 | 17400-69G01-000 | Pump assy,water |
| 1 | 17400-69G05-000 | Pump Assy,Water |
| 2 | 01550-0835A-000 | Bolt |
| 3 | 01421-0830A-000 | BOLT,STUD |
| 4 | 08316-1008A-000 | NUT - Nut, idle gear shaft |
| 5 | 17511-64J01-000 | PULLEY,WATER PUMP |
| 6 | 01550-0610A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01421-0830A-000 | BOLT,STUD | water pump (2009-02-01~) |
| 01550-0610A-000 | Bolt | water pump (2009-02-01~) |
| 01550-0835A-000 | Bolt | water pump (2009-02-01~) |
| 08316-1008A-000 | NUT - Nut, idle gear shaft | water pump (2009-02-01~) |
| 17400-69G01-000 | Pump assy,water | water pump (2009-02-01~) |
| 17400-69G05-000 | Pump Assy,Water | water pump (2009-02-01~) |
| 17511-64J01-000 | PULLEY,WATER PUMP | water pump (2009-02-01~) |
