Search › Model › ZC31S
ZC31S

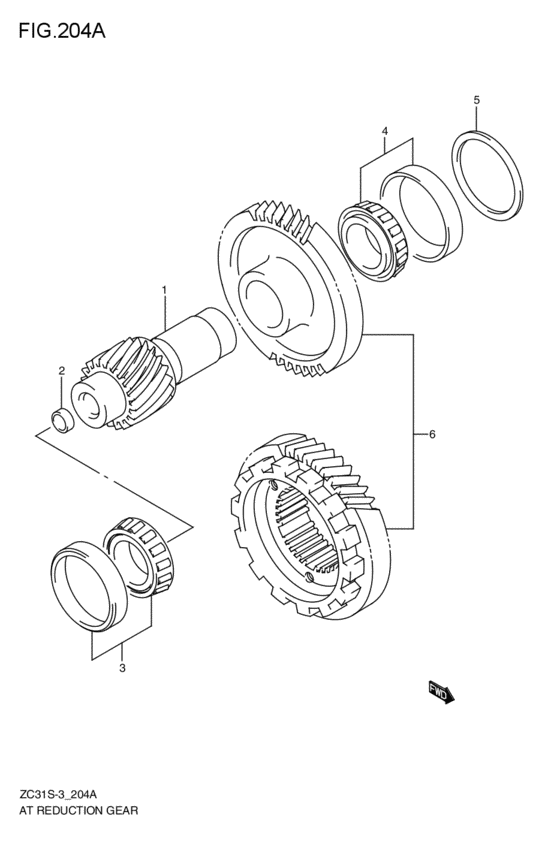

at - reduction gear (AT; 2009-02-01~) 6
| # | OEM | Part name |
|---|---|---|
| 1 | 24131-55G50-000 | SHAFT,COUNTER |
| 2 | 24134-79C10-000 | PLUG,COUNTERSHAFT |
| 3 | 24141-68J10-000 | BEARING ASSY,COUNTERSHAFT,R |
| 4 | 24144-68J10-000 | BEARING ASSY,COUNTERSHAFT,L |
| 5 | 24147-79CT0-000 | SHIM SET,COUNTERSHAFT |
| 6 | 24611-68JT0-000 | GEAR SET,REDUCTION |
| OEM | Part name | Category |
|---|---|---|
| 24131-55G50-000 | SHAFT,COUNTER | at - reduction gear (AT; 2009-02-01~) |
| 24134-79C10-000 | PLUG,COUNTERSHAFT | at - reduction gear (AT; 2009-02-01~) |
| 24141-68J10-000 | BEARING ASSY,COUNTERSHAFT,R | at - reduction gear (AT; 2009-02-01~) |
| 24144-68J10-000 | BEARING ASSY,COUNTERSHAFT,L | at - reduction gear (AT; 2009-02-01~) |
| 24147-79CT0-000 | SHIM SET,COUNTERSHAFT | at - reduction gear (AT; 2009-02-01~) |
| 24611-68JT0-000 | GEAR SET,REDUCTION | at - reduction gear (AT; 2009-02-01~) |
