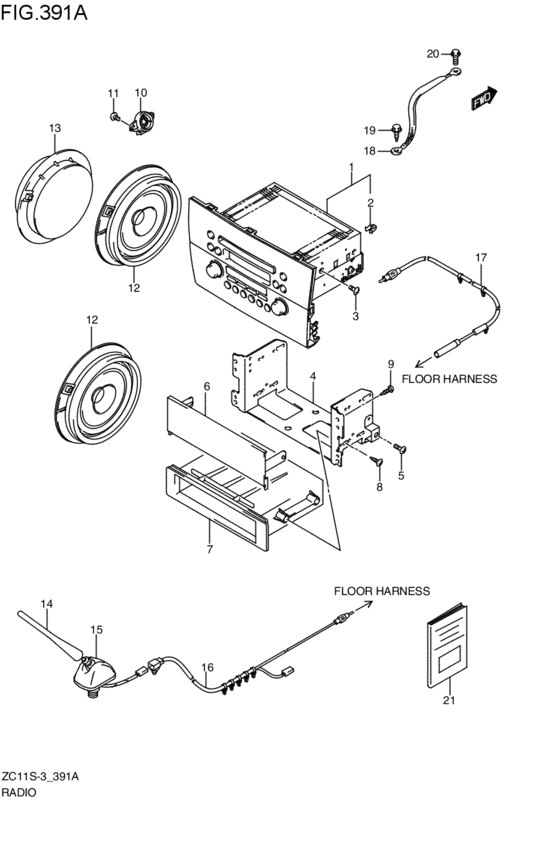

radio (2007-04-01~)
29
| # | OEM | Part name |
|---|
| 1 |
39101-63JD1-BWZ |
チューナアッシ(AM/FM,CD,MD) |
| 1 |
39101-73K10-BWZ |
TUNER ASSY,AM/FM CD MD |
| 2 |
09409-08326-000 |
CLIP |
| 3 |
02142-0508A-000 |
SCREW - Screw, cap |
| 4 |
39321-63J20-000 |
BRACKET,TUNER |
| 4 |
39321-63J30-000 |
BRACKET,TUNER |
| 5 |
02162-0612A-000 |
SCREW - Bolt, bracket |
| 6 |
39161-74G00-000 |
COVER,RADIO HOLE |
| 6 |
39161-80J00-000 |
COVER,RADIO HOLE |
| 7 |
39182-70E51-000 |
POCKET,TUNER |
| 7 |
39182-80J00-000 |
Pocket,tuner |
| 7 |
39182-80J10-000 |
POCKET,TUNER |
| 8 |
03241-0512A-000 |
SCREW |
| 9 |
03541-0516A-000 |
SCREW |
| 10 |
39102-63J00-000 |
SPEAKER ASSY,TWEETER |
| 11 |
03541-0410A-000 |
SCREW |
| 12 |
39102-63J50-000 |
SPEAKER ASSY |
| 14 |
39251-81J00-000 |
ROD,ANTENNA |
| 15 |
39253-81J02-000 |
ベース,アンテナ |
| 15 |
39253-81J03-000 |
BASE,ANTENNA |
| 16 |
39271-63J11-000 |
FEEDER,ROOF,R |
| 17 |
39270-63J00-000 |
FEEDER,I/P |
| 18 |
39312-78F10-000 |
WIRE,NOISE SUPPR |
| 19 |
09115-06005-000 |
BOLT(6X16) |
| 20 |
09103-06168-000 |
BOLT(6X10) |
| 21 |
39103-63JC0-000 |
マニュアル,オーディオ |
| 21 |
39103-63JC1-000 |
New Genuine Part |
| 21 |
39103-63JD0-000 |
マニュアル,オーディオ |
| 21 |
39103-63JD1-000 |
New Genuine Part |
| OEM |
Part name |
Category |
| 02142-0508A-000 |
SCREW - Screw, cap |
radio (2007-04-01~) |
| 02162-0612A-000 |
SCREW - Bolt, bracket |
radio (2007-04-01~) |
| 03241-0512A-000 |
SCREW |
radio (2007-04-01~) |
| 03541-0410A-000 |
SCREW |
radio (2007-04-01~) |
| 03541-0516A-000 |
SCREW |
radio (2007-04-01~) |
| 09103-06168-000 |
BOLT(6X10) |
radio (2007-04-01~) |
| 09115-06005-000 |
BOLT(6X16) |
radio (2007-04-01~) |
| 09409-08326-000 |
CLIP |
radio (2007-04-01~) |
| 39101-63JD1-BWZ |
チューナアッシ(AM/FM,CD,MD) |
radio (2007-04-01~) |
| 39101-73K10-BWZ |
TUNER ASSY,AM/FM CD MD |
radio (2007-04-01~) |
| 39102-63J00-000 |
SPEAKER ASSY,TWEETER |
radio (2007-04-01~) |
| 39102-63J50-000 |
SPEAKER ASSY |
radio (2007-04-01~) |
| 39103-63JC0-000 |
マニュアル,オーディオ |
radio (2007-04-01~) |
| 39103-63JC1-000 |
New Genuine Part |
radio (2007-04-01~) |
| 39103-63JD0-000 |
マニュアル,オーディオ |
radio (2007-04-01~) |
| 39103-63JD1-000 |
New Genuine Part |
radio (2007-04-01~) |
| 39161-74G00-000 |
COVER,RADIO HOLE |
radio (2007-04-01~) |
| 39161-80J00-000 |
COVER,RADIO HOLE |
radio (2007-04-01~) |
| 39182-70E51-000 |
POCKET,TUNER |
radio (2007-04-01~) |
| 39182-80J00-000 |
Pocket,tuner |
radio (2007-04-01~) |
| 39182-80J10-000 |
POCKET,TUNER |
radio (2007-04-01~) |
| 39251-81J00-000 |
ROD,ANTENNA |
radio (2007-04-01~) |
| 39253-81J02-000 |
ベース,アンテナ |
radio (2007-04-01~) |
| 39253-81J03-000 |
BASE,ANTENNA |
radio (2007-04-01~) |
| 39270-63J00-000 |
FEEDER,I/P |
radio (2007-04-01~) |
| 39271-63J11-000 |
FEEDER,ROOF,R |
radio (2007-04-01~) |
| 39312-78F10-000 |
WIRE,NOISE SUPPR |
radio (2007-04-01~) |
| 39321-63J20-000 |
BRACKET,TUNER |
radio (2007-04-01~) |
| 39321-63J30-000 |
BRACKET,TUNER |
radio (2007-04-01~) |
