| 01550-1025A-000 |
Bolt - Bolt, drive gear |

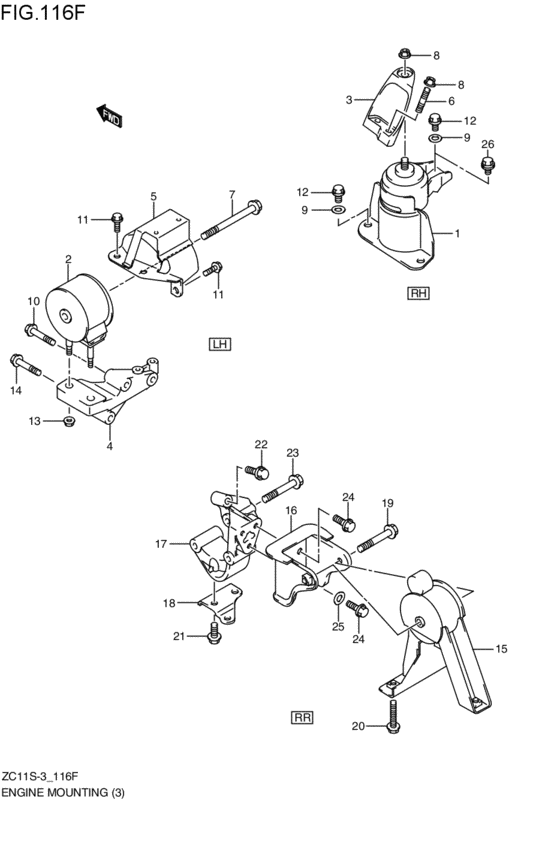

engine mounting (AT:2WD; 2007-04-01~) |
| 01550-1050A-000 |
Bolt - Bolt, exhaust tube |
engine mounting (AT:2WD; 2007-04-01~) |
| 01550-1060A-000 |
Bolt |
engine mounting (AT:2WD; 2007-04-01~) |
| 01550-1075A-000 |
Bolt |
engine mounting (AT:2WD; 2007-04-01~) |
| 01551-0825A-000 |
Bolt |
engine mounting (AT:2WD; 2007-04-01~) |
| 01551-1025A-000 |
Bolt |
engine mounting (AT:2WD; 2007-04-01~) |
| 08316-1010A-000 |
NUT - Nut, kick starter |
engine mounting (AT:2WD; 2007-04-01~) |
| 09103-10337-000 |
BOLT(10X85) |
engine mounting (AT:2WD; 2007-04-01~) |
| 09103-10405-000 |
BOLT(10X30) |
engine mounting (AT:2WD; 2007-04-01~) |
| 09108-10136-000 |
BOLT,STUD(10X50) |
engine mounting (AT:2WD; 2007-04-01~) |
| 09113-10004-000 |
BOLT(10X85) |
engine mounting (AT:2WD; 2007-04-01~) |
| 09113-10009-000 |
BOLT(10X25) |
engine mounting (AT:2WD; 2007-04-01~) |
| 09113-12001-000 |
BOLT(12X150) |
engine mounting (AT:2WD; 2007-04-01~) |
| 09159-10115-000 |
NUT |
engine mounting (AT:2WD; 2007-04-01~) |
| 09160-10093-000 |
WASHER(10.5X24X2.3) |
engine mounting (AT:2WD; 2007-04-01~) |
| 09160-10143-000 |
WASHER(10.5X22X1.6) |
engine mounting (AT:2WD; 2007-04-01~) |
| 11610-73K00-000 |
MOUNTING,ENG |
engine mounting (AT:2WD; 2007-04-01~) |
| 11620-63J00-000 |
MOUNTING,ENG |
engine mounting (AT:2WD; 2007-04-01~) |
| 11641-63J00-000 |
BRACKET,ENG MTG,R |
engine mounting (AT:2WD; 2007-04-01~) |
| 11651-63J10-000 |
BRACKET,ENG MTG,L |
engine mounting (AT:2WD; 2007-04-01~) |
| 11671-73K00-000 |
BRACKET,ENG MTG,L |
engine mounting (AT:2WD; 2007-04-01~) |
| 11710-63J30-000 |
MOUNTING,ENG RR |
engine mounting (AT:2WD; 2007-04-01~) |
| 11740-63J00-000 |
BRACKET,ENG RR MTG |
engine mounting (AT:2WD; 2007-04-01~) |
| 11749-63J11-000 |
BRACKET,ENG MTG RR |
engine mounting (AT:2WD; 2007-04-01~) |
| 11751-63J00-000 |
STIFFENER,ENG MTG BRKT RR |
engine mounting (AT:2WD; 2007-04-01~) |
