Search › Model › ZC21S
ZC21S

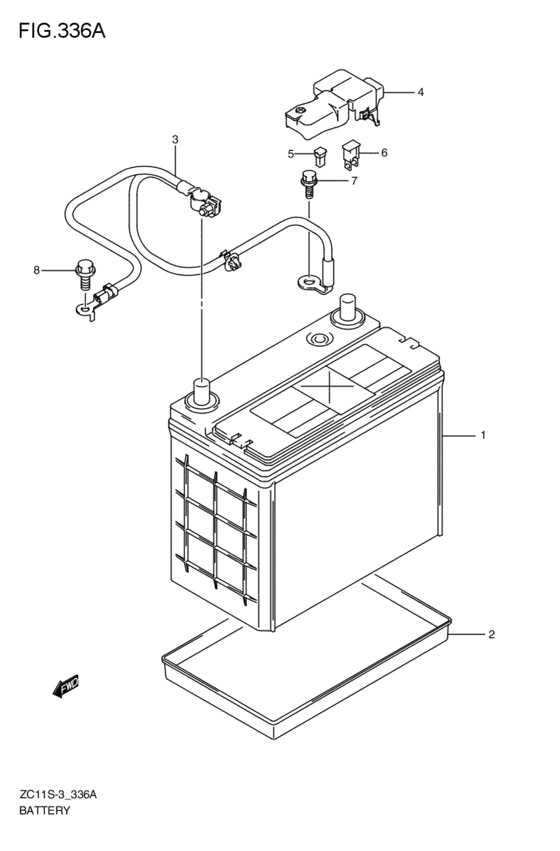

battery (2007-04-01~) 10
| # | OEM | Part name |
|---|---|---|
| 1 | 33610-82120-000 | Battery assy |
| 1 | 33610-821V1-000 | BATTERY ASSY,55B24R (Cannot supply) |
| 2 | 33660-73010-000 | Tray, battery |
| 2 | 33660-71L10-000 | TRAY,BATTERY |
| 3 | 33850-73K20-000 | CABLE,BTRY GND |
| 4 | 36694-63J00-000 | COVER,BATTERY TERMINAL |
| 5 | 09481-50401-000 | FUSE(50A) |
| 6 | 09481-80301-000 | FUSE(80A) |
| 7 | 09115-06005-000 | BOLT(6X16) |
| 8 | 01550-0812A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01550-0812A-000 | Bolt | battery (2007-04-01~) |
| 09115-06005-000 | BOLT(6X16) | battery (2007-04-01~) |
| 09481-50401-000 | FUSE(50A) | battery (2007-04-01~) |
| 09481-80301-000 | FUSE(80A) | battery (2007-04-01~) |
| 33610-82120-000 | Battery assy | battery (2007-04-01~) |
| 33610-821V1-000 | BATTERY ASSY,55B24R (Cannot supply) | battery (2007-04-01~) |
| 33660-71L10-000 | TRAY,BATTERY | battery (2007-04-01~) |
| 33660-73010-000 | Tray, battery | battery (2007-04-01~) |
| 33850-73K20-000 | CABLE,BTRY GND | battery (2007-04-01~) |
| 36694-63J00-000 | COVER,BATTERY TERMINAL | battery (2007-04-01~) |
