| 01550-0855A-000 |
Bolt - Bolt, gear holder |

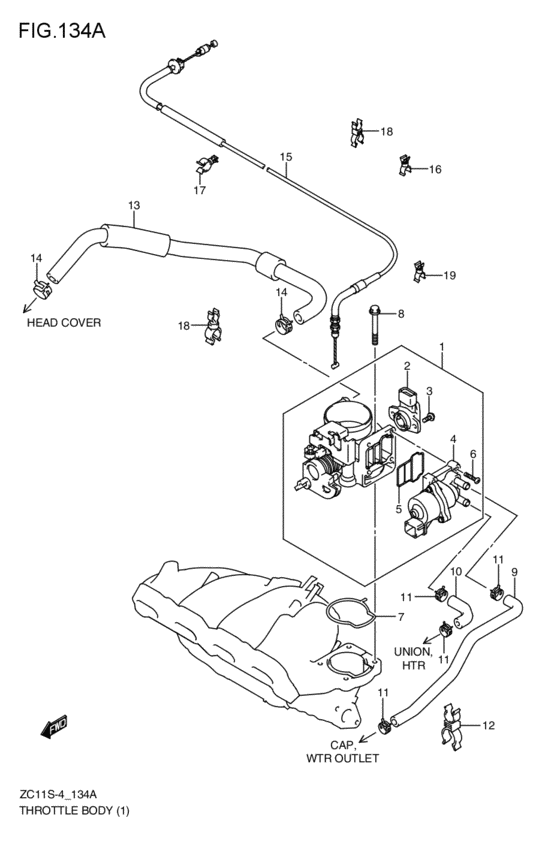

throttle body (M13A; 2009-02-01~) |
| 09401-12410-000 |
CLIP - Clip, filter outlet |
throttle body (M13A; 2009-02-01~) |
| 09401-18404-000 |
CLIP |
throttle body (M13A; 2009-02-01~) |
| 09408-00048-000 |
CLAMP |
throttle body (M13A; 2009-02-01~) |
| 09408-00079-000 |
CLAMP |
throttle body (M13A; 2009-02-01~) |
| 09408-00080-000 |
CLAMP |
throttle body (M13A; 2009-02-01~) |
| 09408-00186-000 |
CLAMP |
throttle body (M13A; 2009-02-01~) |
| 09408-00219-000 |
CLAMP |
throttle body (M13A; 2009-02-01~) |
| 11191-60J00-000 |
HOSE,BREATHER |
throttle body (M13A; 2009-02-01~) |
| 13400-84E12-000 |
BODY ASSY,THROTTLE |
throttle body (M13A; 2009-02-01~) |
| 13420-86G01-000 |
SENSOR,THROTTLE POSITION |
throttle body (M13A; 2009-02-01~) |
| 13421-86G00-000 |
GASKET,THROTTLE BODY |
throttle body (M13A; 2009-02-01~) |
| 13428-77G1V-000 |
SCREW,4X12 |
throttle body (M13A; 2009-02-01~) |
| 13491-60J00-000 |
HOSE,WTR THROTTLE BODY INLET |
throttle body (M13A; 2009-02-01~) |
| 13492-60J00-000 |
HOSE,WTR THROTTLE BODY OUTLET |
throttle body (M13A; 2009-02-01~) |
| 13601-05148-XC0 |
SCREW(5X14) |
throttle body (M13A; 2009-02-01~) |
| 14139-70G30-000 |
GASKET,ISC VALVE |
throttle body (M13A; 2009-02-01~) |
| 15910-63J00-000 |
CABLE ASSY,ACCEL |
throttle body (M13A; 2009-02-01~) |
| 18137-83E11-000 |
VALVE,ISC |
throttle body (M13A; 2009-02-01~) |
