Z51

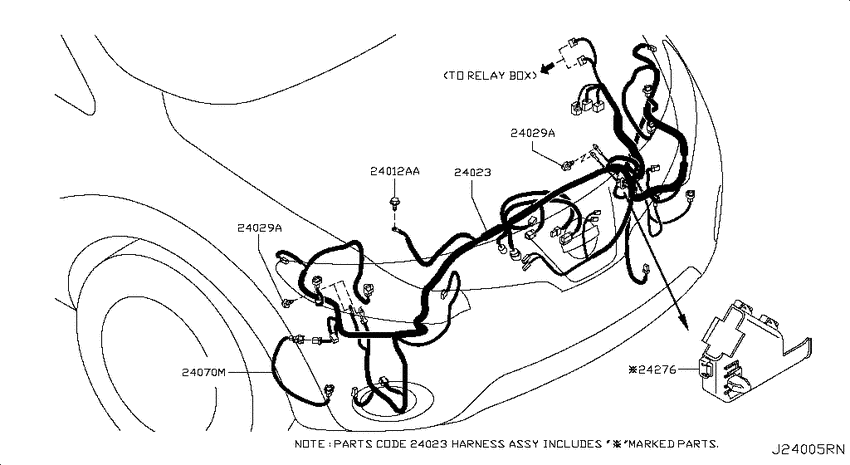

Wiring (2009-09-01 ~ ; FITTING(BODY); WAG) 5
| # | OEM | Part name |
|---|---|---|
| 24023 | 24023-1V40A | Harness-Sub, |
| 24029 | 01125-N8011 | Bolt |
| 24070 | 24070-1AA0A | Harness Assy-Fog Lamp |
| 24276 | 24273-1AA0A | Protector-Harness |
| 24276 | 24275-0E000 | PROTECTOR-HARNESS |
| OEM | Part name | Category |
|---|---|---|
| 01125-N8011 | Bolt | Wiring (2009-09-01 ~ ; FITTING(BODY); WAG) |
| 24023-1V40A | Harness-Sub, | Wiring (2009-09-01 ~ ; FITTING(BODY); WAG) |
| 24070-1AA0A | Harness Assy-Fog Lamp | Wiring (2009-09-01 ~ ; FITTING(BODY); WAG) |
| 24273-1AA0A | Protector-Harness | Wiring (2009-09-01 ~ ; FITTING(BODY); WAG) |
| 24275-0E000 | PROTECTOR-HARNESS | Wiring (2009-09-01 ~ ; FITTING(BODY); WAG) |
