Search › Model › Z51
Z51

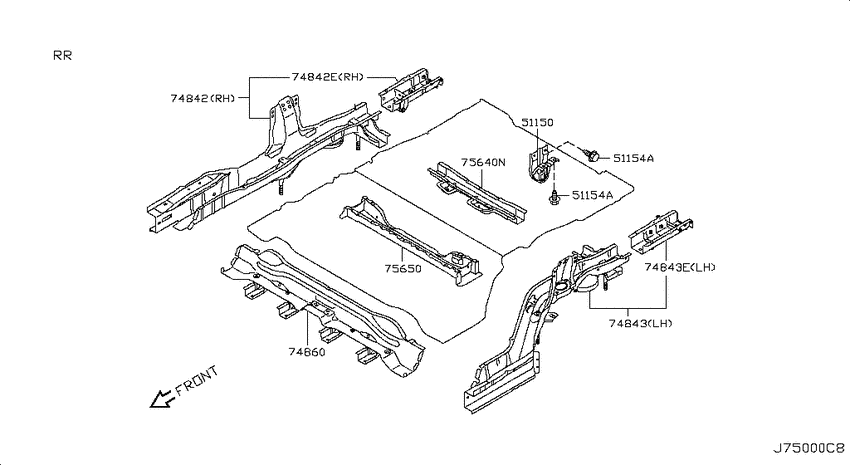

Member (2009-09-01 ~ ; REAR; WAG) 9
| # | OEM | Part name |
|---|---|---|
| 51150 | 51150-CA000 | Hook-Rear Tie Down |
| 51154 | 01125-N0101 | Bolt |
| 74842 | 75510-1AA0A | Member-side,rear rh |
| 74842 | 75520-1AA0A | Extension-side member,rear rh |
| 74843 | 75511-1AA0A | Member-side,rear lh |
| 74843 | 75521-1AA0A | Extension-side member,rear lh |
| 74860 | 75630-1AA0A | Member-cross,rear seat |
| 75640 | 75640-1AA0A | Member-cross,spare wheel |
| 75650 | 75650-1AA0A | Member assy-rear cross center |
| OEM | Part name | Category |
|---|---|---|
| 01125-N0101 | Bolt | Member (2009-09-01 ~ ; REAR; WAG) |
| 51150-CA000 | Hook-Rear Tie Down | Member (2009-09-01 ~ ; REAR; WAG) |
| 75510-1AA0A | Member-side,rear rh | Member (2009-09-01 ~ ; REAR; WAG) |
| 75511-1AA0A | Member-side,rear lh | Member (2009-09-01 ~ ; REAR; WAG) |
| 75520-1AA0A | Extension-side member,rear rh | Member (2009-09-01 ~ ; REAR; WAG) |
| 75521-1AA0A | Extension-side member,rear lh | Member (2009-09-01 ~ ; REAR; WAG) |
| 75630-1AA0A | Member-cross,rear seat | Member (2009-09-01 ~ ; REAR; WAG) |
| 75640-1AA0A | Member-cross,spare wheel | Member (2009-09-01 ~ ; REAR; WAG) |
| 75650-1AA0A | Member assy-rear cross center | Member (2009-09-01 ~ ; REAR; WAG) |
