Search › Model › Z51
Z51

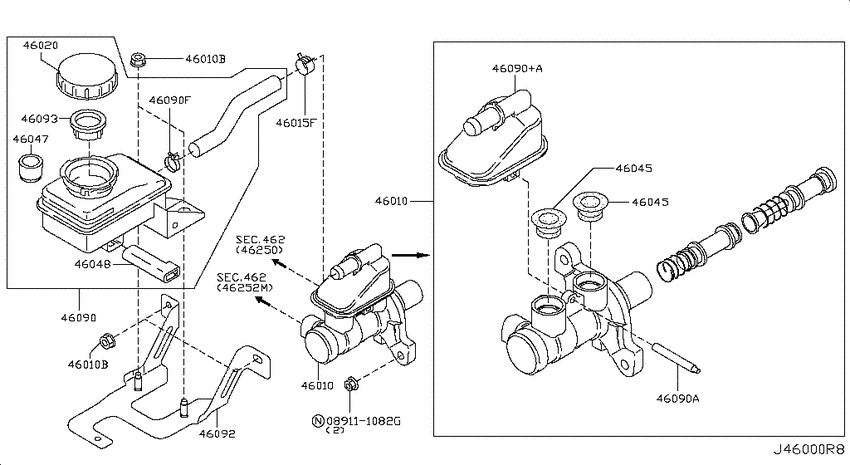

Brake master cylinder (2009-09-01 ~ ; VQ35DE) 7
| # | OEM | Part name |
|---|---|---|
| 46020 | 46020-AL600 | Cap Assy-Oil Reservoir Tank |
| 46047 | 46047-60U04 | Float-Reservoir Tank |
| 46048 | 46048-64J01 | Indicator Assy-Level |
| 46090 | 46090-1AA0B | Tank Assy-Brake Oil Reservoir |
| 46090 | 46091-1AA1B | Tank-Oil Reservoir |
| 46090 | 46037-AD000 | Pin-Spring |
| 46092 | 46092-1AA1B | Bracket-Reserv0Ir |
| OEM | Part name | Category |
|---|---|---|
| 46020-AL600 | Cap Assy-Oil Reservoir Tank | Brake master cylinder (2009-09-01 ~ ; VQ35DE) |
| 46037-AD000 | Pin-Spring | Brake master cylinder (2009-09-01 ~ ; VQ35DE) |
| 46047-60U04 | Float-Reservoir Tank | Brake master cylinder (2009-09-01 ~ ; VQ35DE) |
| 46048-64J01 | Indicator Assy-Level | Brake master cylinder (2009-09-01 ~ ; VQ35DE) |
| 46090-1AA0B | Tank Assy-Brake Oil Reservoir | Brake master cylinder (2009-09-01 ~ ; VQ35DE) |
| 46091-1AA1B | Tank-Oil Reservoir | Brake master cylinder (2009-09-01 ~ ; VQ35DE) |
| 46092-1AA1B | Bracket-Reserv0Ir | Brake master cylinder (2009-09-01 ~ ; VQ35DE) |
