Z38A

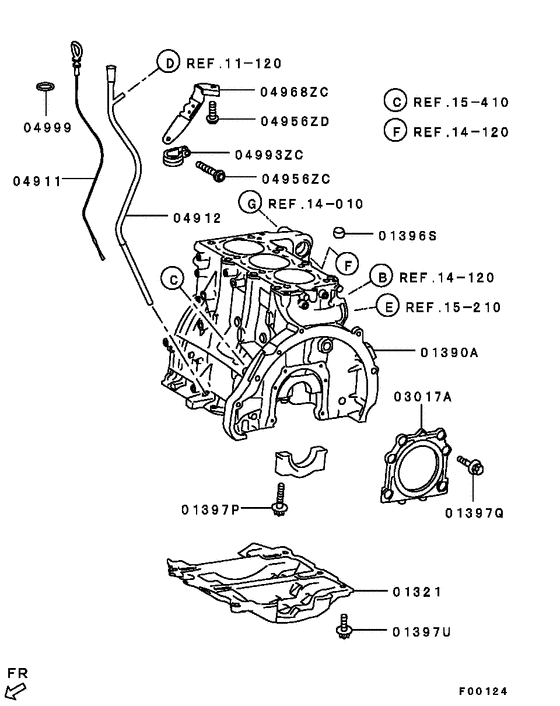

Cylinder block (ALL) 14
| # | OEM | Part name |
|---|---|---|
| 1321 | MN960347 | PLATE,CYLINDER BLOCK BAFFLE |
| 1390 | MN960001 | BLOCK SUB ASSY,CYLINDER |
| 1396 | MN960008 | BUSHING,CYLINDER BLOCK |
| 1397 | MN960004 | BOLT,CYLINDER BLOCK |
| 1397 | MU010486 | BOLT,CYLINDER BLOCK |
| 1397 | MU010007 | BOLT, IGNITION COIL - M6x20 |
| 3017 | MN960013 | CASE ASSY,CRANKSHAFT RR OIL SEAL |
| 4911 | MN960350 | GAUGE,ENG OIL LEVEL |
| 4912 | MN960044 | GUIDE,ENG OIL LEVEL GAUGE |
| 4956 | MU010005 | BOLT, M/T CLUTCH CONTROL EQUIP - External hex,6x1.0x12 |
| 4956 | MN960047 | BOLT,ENG OIL FILLER |
| 4968 | MN960045 | BRACKET,CYLINDER BLOCK |
| 4993 | MN960345 | CLAMP,ENG OIL FILLER |
| 4999 | MN960049 | O-RING,ENG OIL FILLER |
| OEM | Part name | Category |
|---|---|---|
| MN960001 | BLOCK SUB ASSY,CYLINDER | Cylinder block (ALL) |
| MN960004 | BOLT,CYLINDER BLOCK | Cylinder block (ALL) |
| MN960008 | BUSHING,CYLINDER BLOCK | Cylinder block (ALL) |
| MN960013 | CASE ASSY,CRANKSHAFT RR OIL SEAL | Cylinder block (ALL) |
| MN960044 | GUIDE,ENG OIL LEVEL GAUGE | Cylinder block (ALL) |
| MN960045 | BRACKET,CYLINDER BLOCK | Cylinder block (ALL) |
| MN960047 | BOLT,ENG OIL FILLER | Cylinder block (ALL) |
| MN960049 | O-RING,ENG OIL FILLER | Cylinder block (ALL) |
| MN960345 | CLAMP,ENG OIL FILLER | Cylinder block (ALL) |
| MN960347 | PLATE,CYLINDER BLOCK BAFFLE | Cylinder block (ALL) |
| MN960350 | GAUGE,ENG OIL LEVEL | Cylinder block (ALL) |
| MU010005 | BOLT, M/T CLUTCH CONTROL EQUIP - External hex,6x1.0x12 | Cylinder block (ALL) |
| MU010007 | BOLT, IGNITION COIL - M6x20 | Cylinder block (ALL) |
| MU010486 | BOLT,CYLINDER BLOCK | Cylinder block (ALL) |
