Search › Model › Z34
Z34

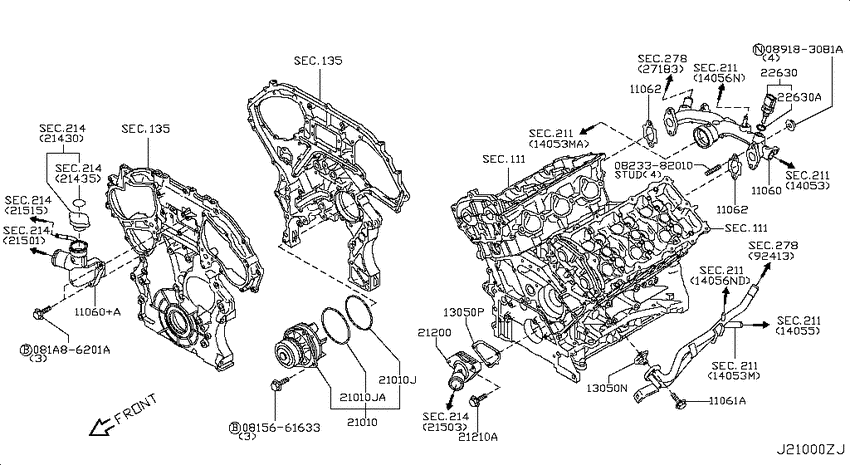

Water pump, cooling fan & thermostat (2009-10-01 ~ ; VQ37VHR) 8
| # | OEM | Part name |
|---|---|---|
| 11060 | 11060-JK20A | Outlet-Water |
| 11061 | 13075-JK20C | Bolt |
| 11062 | 11062-AL51A | 11062AL51A |
| 21010 | 21049-JK20A | Seal-O Ring |
| 21010 | 21049-JK20B | Seal-O Ring |
| 21210 | 11916-31U0B | Bolt |
| 22630 | 22630-ED000 | Engine Coolant Temperature Sensor |
| 823382010 | 08233-82010 | スタツド,コース |
| OEM | Part name | Category |
|---|---|---|
| 08233-82010 | スタツド,コース | Water pump, cooling fan & thermostat (2009-10-01 ~ ; VQ37VHR) |
| 11060-JK20A | Outlet-Water | Water pump, cooling fan & thermostat (2009-10-01 ~ ; VQ37VHR) |
| 11062-AL51A | 11062AL51A | Water pump, cooling fan & thermostat (2009-10-01 ~ ; VQ37VHR) |
| 11916-31U0B | Bolt | Water pump, cooling fan & thermostat (2009-10-01 ~ ; VQ37VHR) |
| 13075-JK20C | Bolt | Water pump, cooling fan & thermostat (2009-10-01 ~ ; VQ37VHR) |
| 21049-JK20A | Seal-O Ring | Water pump, cooling fan & thermostat (2009-10-01 ~ ; VQ37VHR) |
| 21049-JK20B | Seal-O Ring | Water pump, cooling fan & thermostat (2009-10-01 ~ ; VQ37VHR) |
| 22630-ED000 | Engine Coolant Temperature Sensor | Water pump, cooling fan & thermostat (2009-10-01 ~ ; VQ37VHR) |
- Source
- Public OEM parts-catalog data
- Variants
- 2 / 16
- Category
- 195
- Collected
- 2026-07-26
