| 08360-6122D |
Screw |

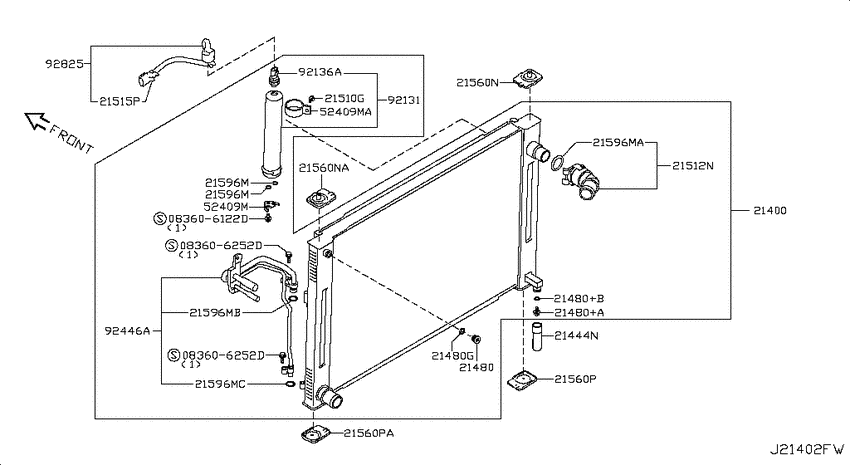

Radiator, shroud & fitting (2009-10-01 ~ ; RADIATOR; VQ37VHR.6MT) |
| 21410-JK20A |
Radiator & Condenser Assy |
Radiator, shroud & fitting (2009-10-01 ~ ; RADIATOR; VQ37VHR.6MT) |
| 21440-JK20B |
Cock-Water Drain |
Radiator, shroud & fitting (2009-10-01 ~ ; RADIATOR; VQ37VHR.6MT) |
| 21441-JK20A |
Cock-Water Drain |
Radiator, shroud & fitting (2009-10-01 ~ ; RADIATOR; VQ37VHR.6MT) |
| 21444-JK20A |
Hose-Drain |
Radiator, shroud & fitting (2009-10-01 ~ ; RADIATOR; VQ37VHR.6MT) |
| 21512-JK20A |
Pipe Assy-Rad, Inlet |
Radiator, shroud & fitting (2009-10-01 ~ ; RADIATOR; VQ37VHR.6MT) |
| 21545-JK000 |
Bracket-Radiator Mounting, Lower |
Radiator, shroud & fitting (2009-10-01 ~ ; RADIATOR; VQ37VHR.6MT) |
| 21545-JK010 |
Bracket-Radiator Mounting, Lower |
Radiator, shroud & fitting (2009-10-01 ~ ; RADIATOR; VQ37VHR.6MT) |
| 64835-JK00B |
Bush-Rubber |
Radiator, shroud & fitting (2009-10-01 ~ ; RADIATOR; VQ37VHR.6MT) |
| 92131-1DJ0A |
Tank Assy-Liquid |
Radiator, shroud & fitting (2009-10-01 ~ ; RADIATOR; VQ37VHR.6MT) |
| 92471-N8210 |
O Ring |
Radiator, shroud & fitting (2009-10-01 ~ ; RADIATOR; VQ37VHR.6MT) |
| 92825-1EA0A |
Sub harnes-conn |
Radiator, shroud & fitting (2009-10-01 ~ ; RADIATOR; VQ37VHR.6MT) |
