Search › Model › Z34
Z34

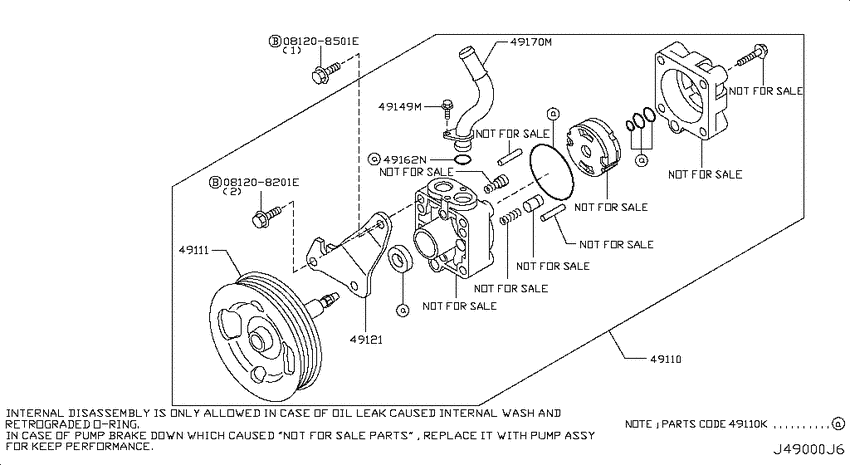

Power steering pump (2009-10-01 ~ ; VQ37VHR) 6
| # | OEM | Part name |
|---|---|---|
| 49110 | 49110-1EA0A | Pump Assy-Power Steering |
| 49110 | 49591-6C925 | Seal Kit-Power Steering Pump |
| 49121 | 49121-JK20A | Bracket Assy-Power Steering Pump |
| 49162 | 49162-6C900 | Seal-Inlet Connector |
| 49170 | 49161-EG00A | Connector-Inlet |
| 81208501 | 08120-8501E | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 08120-8501E | Bolt-hexagon | Power steering pump (2009-10-01 ~ ; VQ37VHR) |
| 49110-1EA0A | Pump Assy-Power Steering | Power steering pump (2009-10-01 ~ ; VQ37VHR) |
| 49121-JK20A | Bracket Assy-Power Steering Pump | Power steering pump (2009-10-01 ~ ; VQ37VHR) |
| 49161-EG00A | Connector-Inlet | Power steering pump (2009-10-01 ~ ; VQ37VHR) |
| 49162-6C900 | Seal-Inlet Connector | Power steering pump (2009-10-01 ~ ; VQ37VHR) |
| 49591-6C925 | Seal Kit-Power Steering Pump | Power steering pump (2009-10-01 ~ ; VQ37VHR) |
