Search › Model › Z34
Z34

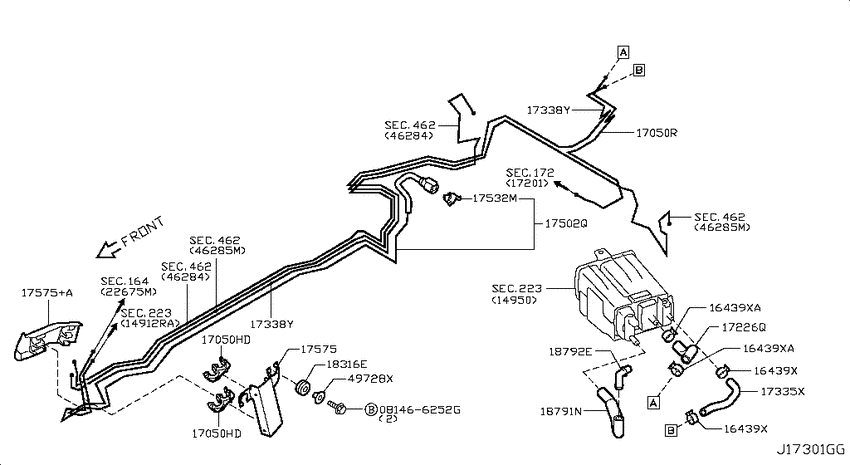

Fuel piping (2009-10-01 ~ ; FUEL PIPING; VQ37VHR) 9
| # | OEM | Part name |
|---|---|---|
| 17050 | 17561-CG200 | Clip |
| 17050 | 17224-1EA0A | Hose-Fuel, Fuel Piping |
| 17226 | 17226-CE800 | Hose-Ventilation |
| 17335 | 17335-CE800 | Hose-Evaporation |
| 17338 | 17338-1EA0B | Tube-Breather |
| 17502 | 17502-1EA0A | Tube Assy-Fuel Feed |
| 18791 | 18791-CD010 | Hose-Drain, Canister |
| 18792 | 18792-5U300 | Connector |
| 49728 | 49728-55S0A | Collar-Insulator |
| OEM | Part name | Category |
|---|---|---|
| 17224-1EA0A | Hose-Fuel, Fuel Piping | Fuel piping (2009-10-01 ~ ; FUEL PIPING; VQ37VHR) |
| 17226-CE800 | Hose-Ventilation | Fuel piping (2009-10-01 ~ ; FUEL PIPING; VQ37VHR) |
| 17335-CE800 | Hose-Evaporation | Fuel piping (2009-10-01 ~ ; FUEL PIPING; VQ37VHR) |
| 17338-1EA0B | Tube-Breather | Fuel piping (2009-10-01 ~ ; FUEL PIPING; VQ37VHR) |
| 17502-1EA0A | Tube Assy-Fuel Feed | Fuel piping (2009-10-01 ~ ; FUEL PIPING; VQ37VHR) |
| 17561-CG200 | Clip | Fuel piping (2009-10-01 ~ ; FUEL PIPING; VQ37VHR) |
| 18791-CD010 | Hose-Drain, Canister | Fuel piping (2009-10-01 ~ ; FUEL PIPING; VQ37VHR) |
| 18792-5U300 | Connector | Fuel piping (2009-10-01 ~ ; FUEL PIPING; VQ37VHR) |
| 49728-55S0A | Collar-Insulator | Fuel piping (2009-10-01 ~ ; FUEL PIPING; VQ37VHR) |
