Z34

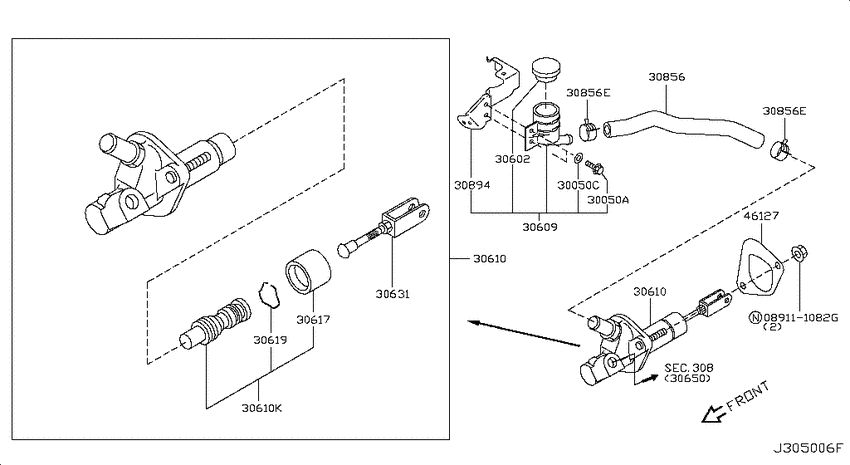

Clutch master cylinder (2009-10-01 ~ ; VQ37VHR) 9
| # | OEM | Part name |
|---|---|---|
| 30050 | 31377-JK60A | Bolt |
| 30050 | 32154-JK60A | Washer |
| 30609 | 30617-JK60A | Reservoir-Oil, Clutch |
| 30610 | 30611-JK025 | Piston Kit-Clutch Master Cylinder |
| 30617 | 30618-2J900 | Cover-Dust |
| 30619 | 30639-65J10 | Stopper |
| 30631 | 30631-JK00A | Rod Assy-Push |
| 30856 | 30856-JK600 | Hose-Clutch Reservoir |
| 30894 | 30635-JK60A | Bracket-Clutch Hose |
| OEM | Part name | Category |
|---|---|---|
| 30611-JK025 | Piston Kit-Clutch Master Cylinder | Clutch master cylinder (2009-10-01 ~ ; VQ37VHR) |
| 30617-JK60A | Reservoir-Oil, Clutch | Clutch master cylinder (2009-10-01 ~ ; VQ37VHR) |
| 30618-2J900 | Cover-Dust | Clutch master cylinder (2009-10-01 ~ ; VQ37VHR) |
| 30631-JK00A | Rod Assy-Push | Clutch master cylinder (2009-10-01 ~ ; VQ37VHR) |
| 30635-JK60A | Bracket-Clutch Hose | Clutch master cylinder (2009-10-01 ~ ; VQ37VHR) |
| 30639-65J10 | Stopper | Clutch master cylinder (2009-10-01 ~ ; VQ37VHR) |
| 30856-JK600 | Hose-Clutch Reservoir | Clutch master cylinder (2009-10-01 ~ ; VQ37VHR) |
| 31377-JK60A | Bolt | Clutch master cylinder (2009-10-01 ~ ; VQ37VHR) |
| 32154-JK60A | Washer | Clutch master cylinder (2009-10-01 ~ ; VQ37VHR) |
