Search › Model › Z34
Z34

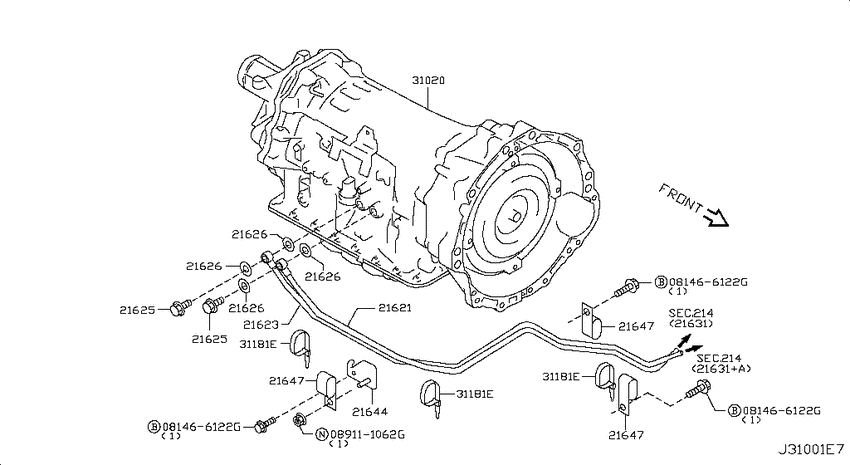

Auto transmission,transaxle & fitting (2009-10-01 ~ ; OIL COOLER TUBE PARTS; 7AT) 5
| # | OEM | Part name |
|---|---|---|
| 21621 | 21621-1CB0A | Tube Assy-Oil Cooler |
| 21623 | 21623-1CB0A | Tube Assy-Oil Cooler |
| 21644 | 21644-JL00A | Bracket-Tube Clamp |
| 31020 | 31377-JL00A | Bolt |
| 31181 | 24216-S5801 | Clip-Wiring Harness |
| OEM | Part name | Category |
|---|---|---|
| 21621-1CB0A | Tube Assy-Oil Cooler | Auto transmission,transaxle & fitting (2009-10-01 ~ ; OIL COOLER TUBE PARTS; 7AT) |
| 21623-1CB0A | Tube Assy-Oil Cooler | Auto transmission,transaxle & fitting (2009-10-01 ~ ; OIL COOLER TUBE PARTS; 7AT) |
| 21644-JL00A | Bracket-Tube Clamp | Auto transmission,transaxle & fitting (2009-10-01 ~ ; OIL COOLER TUBE PARTS; 7AT) |
| 24216-S5801 | Clip-Wiring Harness | Auto transmission,transaxle & fitting (2009-10-01 ~ ; OIL COOLER TUBE PARTS; 7AT) |
| 31377-JL00A | Bolt | Auto transmission,transaxle & fitting (2009-10-01 ~ ; OIL COOLER TUBE PARTS; 7AT) |
