Z34

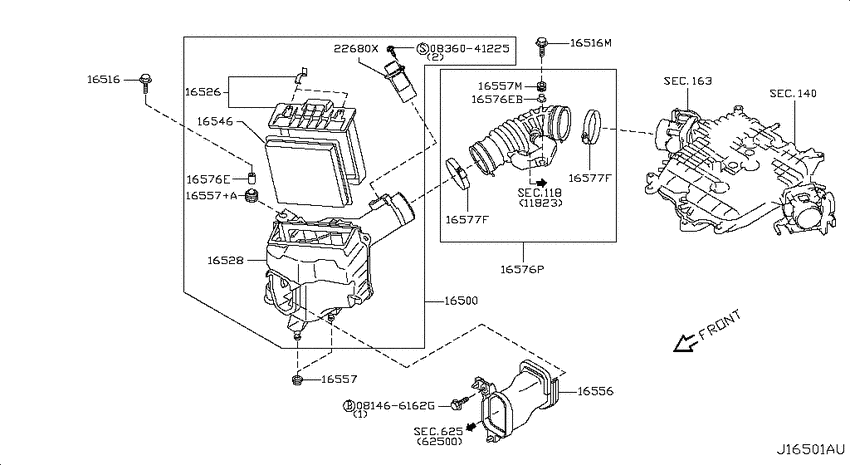

Air cleaner (2009-10-01 ~ ; RH; VQ37VHR) 9
| # | OEM | Part name |
|---|---|---|
| 16500 | 16500-EV10A | Air Cleaner |
| 16500 | 16500-EV10B | Air Cleaner |
| 16516 | 16516-CR40B | Bolt |
| 16546 | 16546-JK20A | Air Cleaner Element |
| 16557 | 16557-JN20A | Mounting Rubber |
| 16557 | 16557-35F00 | Cushion-Rubber |
| 16576 | 16566-JN20A | Retainer |
| 16577 | 16439-JK21A | Clamp-Hose |
| 836041225 | 08360-41225 | スクリユ-,マシン |
| OEM | Part name | Category |
|---|---|---|
| 08360-41225 | スクリユ-,マシン | Air cleaner (2009-10-01 ~ ; RH; VQ37VHR) |
| 16439-JK21A | Clamp-Hose | Air cleaner (2009-10-01 ~ ; RH; VQ37VHR) |
| 16500-EV10A | Air Cleaner | Air cleaner (2009-10-01 ~ ; RH; VQ37VHR) |
| 16500-EV10B | Air Cleaner | Air cleaner (2009-10-01 ~ ; RH; VQ37VHR) |
| 16516-CR40B | Bolt | Air cleaner (2009-10-01 ~ ; RH; VQ37VHR) |
| 16546-JK20A | Air Cleaner Element | Air cleaner (2009-10-01 ~ ; RH; VQ37VHR) |
| 16557-35F00 | Cushion-Rubber | Air cleaner (2009-10-01 ~ ; RH; VQ37VHR) |
| 16557-JN20A | Mounting Rubber | Air cleaner (2009-10-01 ~ ; RH; VQ37VHR) |
| 16566-JN20A | Retainer | Air cleaner (2009-10-01 ~ ; RH; VQ37VHR) |
