| 01436-00501 |
SCREW |

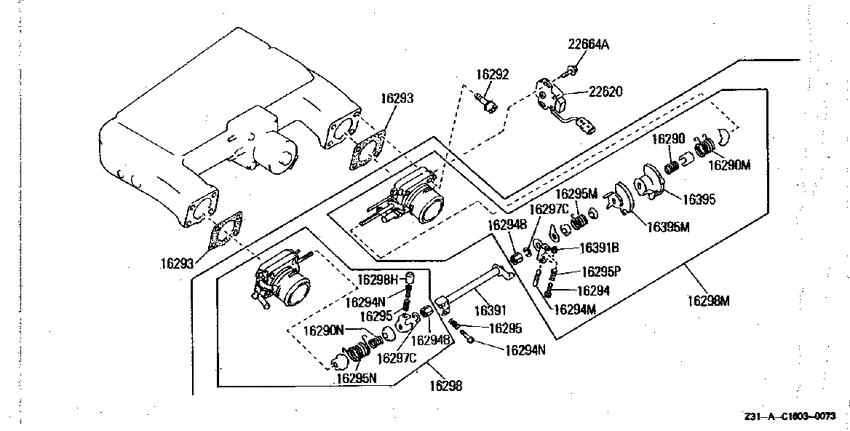

Throttle chamber & iaa unit (1986-10-01 ~ ; VG30D) |
| 16072-F6500 |
Washer-Spring |
Throttle chamber & iaa unit (1986-10-01 ~ ; VG30D) |
| 16118-F6501 |
Throttle Body |
Throttle chamber & iaa unit (1986-10-01 ~ ; VG30D) |
| 16118-F6511 |
Chamber Assy-Throttle |
Throttle chamber & iaa unit (1986-10-01 ~ ; VG30D) |
| 16124-F6500 |
Nut |
Throttle chamber & iaa unit (1986-10-01 ~ ; VG30D) |
| 16124-F6501 |
Nut |
Throttle chamber & iaa unit (1986-10-01 ~ ; VG30D) |
| 16134-F6500 |
Lever-Throttle |
Throttle chamber & iaa unit (1986-10-01 ~ ; VG30D) |
| 16134-F6501 |
Lever-Ascd |
Throttle chamber & iaa unit (1986-10-01 ~ ; VG30D) |
| 16144-F6500 |
Screw-Adjusting |
Throttle chamber & iaa unit (1986-10-01 ~ ; VG30D) |
| 16144-F6501 |
Screw-Adjusting |
Throttle chamber & iaa unit (1986-10-01 ~ ; VG30D) |
| 16144-F6502 |
Screw-Adjusting |
Throttle chamber & iaa unit (1986-10-01 ~ ; VG30D) |
| 16145-F6500 |
Spring-Adjusting Screw |
Throttle chamber & iaa unit (1986-10-01 ~ ; VG30D) |
| 16145-F6501 |
Spring-Adjusting Screw |
Throttle chamber & iaa unit (1986-10-01 ~ ; VG30D) |
| 16160-F6500 |
Spring-Throttle Return |
Throttle chamber & iaa unit (1986-10-01 ~ ; VG30D) |
| 16160-F6501 |
Spring-Throttle Return |
Throttle chamber & iaa unit (1986-10-01 ~ ; VG30D) |
| 16160-F6502 |
Spring-Throttle Return |
Throttle chamber & iaa unit (1986-10-01 ~ ; VG30D) |
| 16160-F6503 |
Spring-Throttle Return |
Throttle chamber & iaa unit (1986-10-01 ~ ; VG30D) |
| 16160-F6504 |
Spring-Throttle Return |
Throttle chamber & iaa unit (1986-10-01 ~ ; VG30D) |
| 16175-F6500 |
Gasket-Throttle Chamber |
Throttle chamber & iaa unit (1986-10-01 ~ ; VG30D) |
| 16207-F6500 |
Cap-Connector |
Throttle chamber & iaa unit (1986-10-01 ~ ; VG30D) |
| 16380-F6500 |
Shaft-Throttle |
Throttle chamber & iaa unit (1986-10-01 ~ ; VG30D) |
| 22620-V5012 |
Throttle Position Switch |
Throttle chamber & iaa unit (1986-10-01 ~ ; VG30D) |
| 22620-V7000 |
Throttle Position Switch |
Throttle chamber & iaa unit (1986-10-01 ~ ; VG30D) |
