Search › Model › Z15A
Z15A

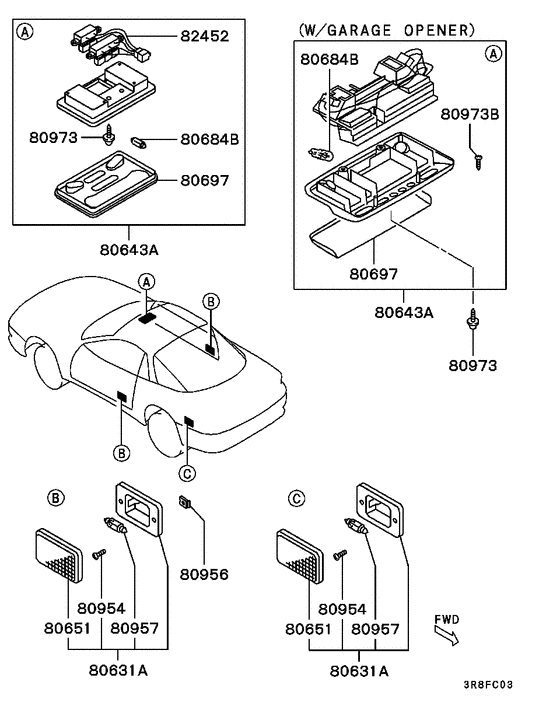

Room lamp 12
| # | OEM | Part name |
|---|---|---|
| 80631 | MB305620 | LAMP ASSY, DOOR - 12v-5w |
| 80631 | MB305621 | LAMP ASSY, DOOR - 12v-5w |
| 80643 | MB530200 | LAMP ASSY, ROOM - 12v-8w |
| 80651 | MB337920 | LENS, DOOR LAMP |
| 80651 | MB337921 | LENS, DOOR LAMP |
| 80684 | MF820513 | BULB, ROOM LAMP |
| 80697 | MB596497 | LENS, ROOM LAMP |
| 80954 | MB509084 | SCREW, FOOT LAMP - Tapping,m4x14 |
| 80956 | MB037975 | NUT, INSTRUMENT PANEL AIR OUTLET - Spring,3 |
| 80957 | MS820071 | BULB, ROOM LAMP - 12v-5w |
| 80973 | MF453332 | SCREW, AIR SPOILER - Tapping,5x14 |
| 82452 | MB530315 | SWITCH, ROOM LAMP |
| OEM | Part name | Category |
|---|---|---|
| MB037975 | NUT, INSTRUMENT PANEL AIR OUTLET - Spring,3 | Room lamp |
| MB305620 | LAMP ASSY, DOOR - 12v-5w | Room lamp |
| MB305621 | LAMP ASSY, DOOR - 12v-5w | Room lamp |
| MB337920 | LENS, DOOR LAMP | Room lamp |
| MB337921 | LENS, DOOR LAMP | Room lamp |
| MB509084 | SCREW, FOOT LAMP - Tapping,m4x14 | Room lamp |
| MB530200 | LAMP ASSY, ROOM - 12v-8w | Room lamp |
| MB530315 | SWITCH, ROOM LAMP | Room lamp |
| MB596497 | LENS, ROOM LAMP | Room lamp |
| MF453332 | SCREW, AIR SPOILER - Tapping,5x14 | Room lamp |
| MF820513 | BULB, ROOM LAMP | Room lamp |
| MS820071 | BULB, ROOM LAMP - 12v-5w | Room lamp |
