Z12

Nissan CUBE · 2009 · 1,491 parts · 217 categories
Z12 ×

← Back to categories

1,491 items

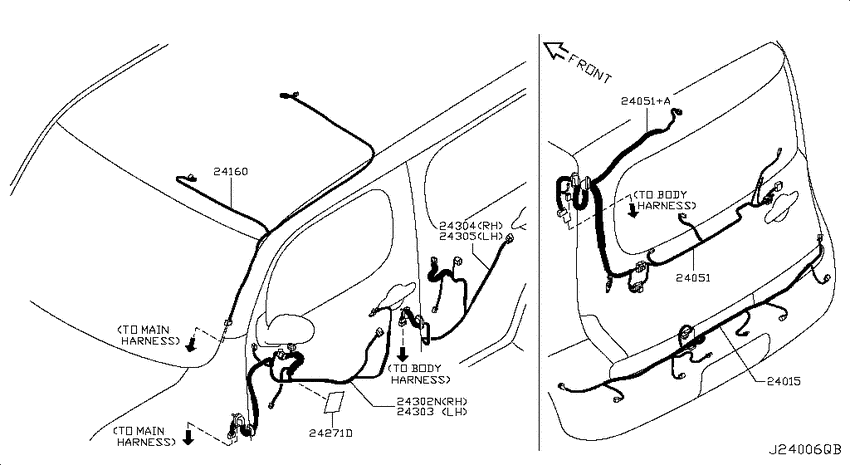

Wiring (2009-02-01 ~ ; DOOR; W) 20
#OEMPart name
24015 24015-1FC0A Harness-Tail
24015 24015-1FC0B Harness-Tail
24051 24051-1FC0A Harness-Back Door
24051 24051-1FC0B Harness-Back Door
24051 24051-1FN0A Harness-Back Door
24051 24051-1FN0B Harness-Back Door
24051 24052-1FC0A Harness-Back Door
24051 24052-1FC0B Harness-Back Door
24051 24052-1FC0C Harness-Back Door
24051 24052-1FN0A Harness-Back Door
24051 24052-1FN0C Harness-Back Door
24160 24060-1FC0C Harness-Room Lamp
24160 24060-1FC0E Harness-Room Lamp
24160 24060-1FC0A Harness-Room Lamp
24302 24124-1FC0A Harness Assy-Door, Front
24302 24124-1FC0C Harness Assy-Door, Front
24303 24125-1FC0A Harness-Front Door, Lh
24303 24125-1FC0C Harness-Front Door, Lh
24304 24126-1FC0A Harness Assy-Door, Rear
24305 24127-1FC0A Harness Assy-Door, Rear Lh
Source
Public OEM parts-catalog data
Variants
2 / 4
Category
217
Collected
2026-07-27
