Z12

Nissan CUBE · 2009 · 1,491 parts · 217 categories

← Back to categories

1,491 items

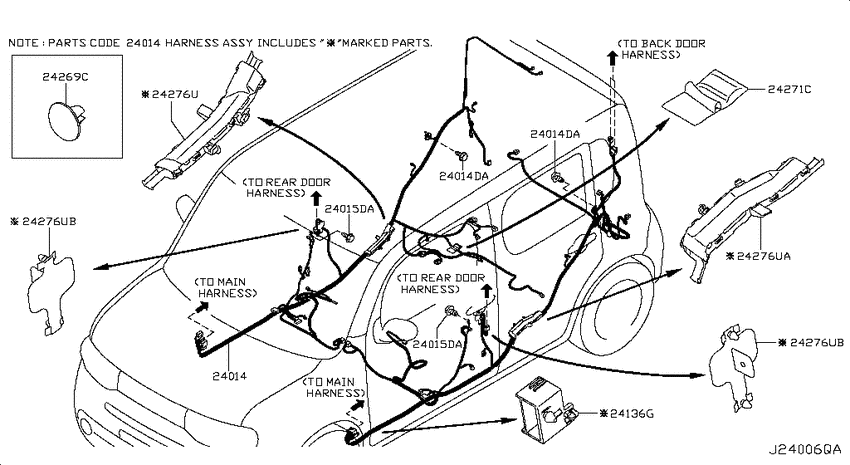

Wiring (2009-02-01 ~ 2009-10-01; CHASSIS; W) 13

#	OEM	Part name
24014	24014-1FC0D	Harness-Body
24014	24014-1FC1A	Harness-Body
24014	24014-1FC1C	Harness-Body
24014	24014-1FC1E	Harness-Body
24014	24014-1FN0A	Harness-Body
24014	24014-1FN0D	Harness-Body
24014	24014-1FC0A	Harness-Body
24136	24346-1FA0A	Bracket Assy-Connector
24269	01553-00111	CLIP-WIRING HARNESS
24271	24271-N7100	Protector-Flat Wire
24276	24275-1FA0A	Protector-Harness
24276	24280-1FA0B	Protector-Harness
24276	24275-CA000	Protector-Harness

OEM	Part name	Category
01553-00111	CLIP-WIRING HARNESS	Wiring (2009-02-01 ~ 2009-10-01; CHASSIS; W)
24014-1FC0A	Harness-Body	Wiring (2009-02-01 ~ 2009-10-01; CHASSIS; W)
24014-1FC0D	Harness-Body	Wiring (2009-02-01 ~ 2009-10-01; CHASSIS; W)
24014-1FC1A	Harness-Body	Wiring (2009-02-01 ~ 2009-10-01; CHASSIS; W)
24014-1FC1C	Harness-Body	Wiring (2009-02-01 ~ 2009-10-01; CHASSIS; W)
24014-1FC1E	Harness-Body	Wiring (2009-02-01 ~ 2009-10-01; CHASSIS; W)
24014-1FN0A	Harness-Body	Wiring (2009-02-01 ~ 2009-10-01; CHASSIS; W)
24014-1FN0D	Harness-Body	Wiring (2009-02-01 ~ 2009-10-01; CHASSIS; W)
24271-N7100	Protector-Flat Wire	Wiring (2009-02-01 ~ 2009-10-01; CHASSIS; W)
24275-1FA0A	Protector-Harness	Wiring (2009-02-01 ~ 2009-10-01; CHASSIS; W)
24275-CA000	Protector-Harness	Wiring (2009-02-01 ~ 2009-10-01; CHASSIS; W)
24280-1FA0B	Protector-Harness	Wiring (2009-02-01 ~ 2009-10-01; CHASSIS; W)
24346-1FA0A	Bracket Assy-Connector	Wiring (2009-02-01 ~ 2009-10-01; CHASSIS; W)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 217
Collected: 2026-07-27
