Search › Model › Z12
Z12

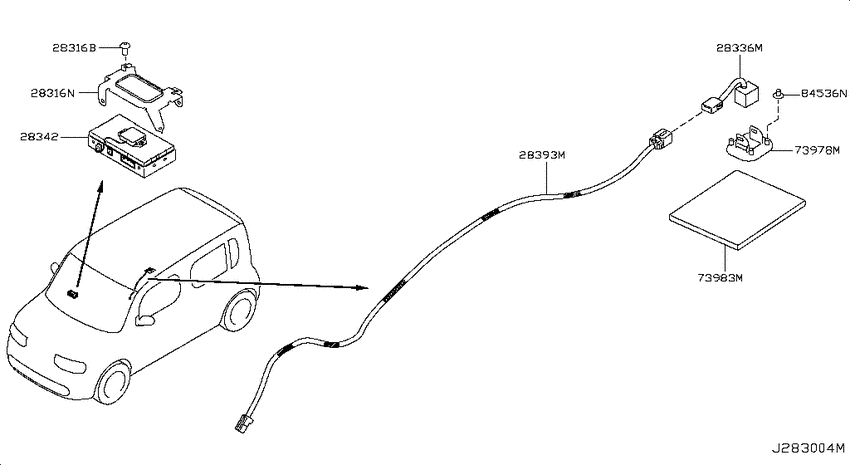

Telephone (2009-02-01 ~ ; W) 7
| # | OEM | Part name |
|---|---|---|
| 28316 | 25233-1FC0A | Bracket-Telephone Unit |
| 28336 | 28336-JK60A | Microphone Unit-Telephone |
| 28342 | 28388-1EA0B | Adapter Assy-Telephone |
| 28342 | 28388-1EA3A | Adapter Assy-Telephone |
| 28393 | 28393-1FC0A | Harness-Microphone Telephone |
| 73978 | 73978-1FC0A | Finisher-Microphpne |
| 73983 | 73983-1U600 | Spacer-Headlining |
| OEM | Part name | Category |
|---|---|---|
| 25233-1FC0A | Bracket-Telephone Unit | Telephone (2009-02-01 ~ ; W) |
| 28336-JK60A | Microphone Unit-Telephone | Telephone (2009-02-01 ~ ; W) |
| 28388-1EA0B | Adapter Assy-Telephone | Telephone (2009-02-01 ~ ; W) |
| 28388-1EA3A | Adapter Assy-Telephone | Telephone (2009-02-01 ~ ; W) |
| 28393-1FC0A | Harness-Microphone Telephone | Telephone (2009-02-01 ~ ; W) |
| 73978-1FC0A | Finisher-Microphpne | Telephone (2009-02-01 ~ ; W) |
| 73983-1U600 | Spacer-Headlining | Telephone (2009-02-01 ~ ; W) |
