Z12

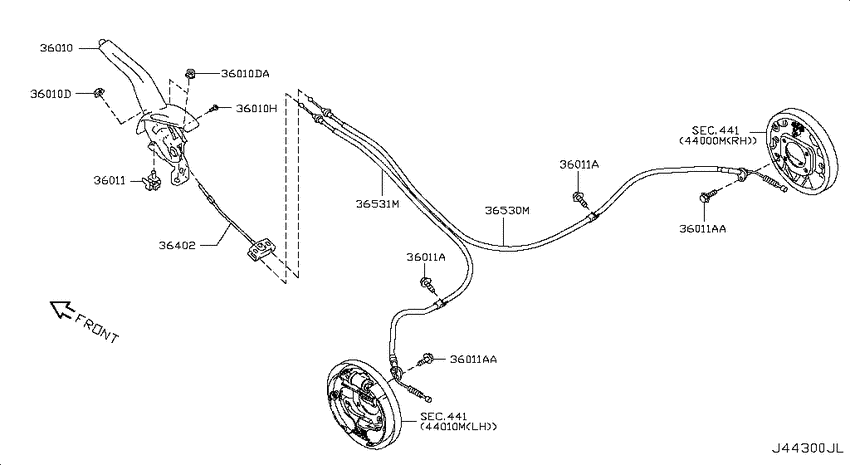

Parking brake control (2009-02-01 ~ ; MR18DE) 8
| # | OEM | Part name |
|---|---|---|
| 36010 | 36010-1FC0A | Device Assy-Parking Brake Control |
| 36010 | 36010-1FC1A | Device Assy-Parking Brake Control |
| 36011 | 01125-N6121 | Bolt |
| 36011 | 01121-06771 | BOLT |
| 36402 | 36402-1FC1A | Cable Assy-Parking Brake, Front |
| 36402 | 36402-AX010 | Cable Assy-Parking Brake, Front |
| 36530 | 36530-1FC0A | Cable Assy-Parking, Rear Rh |
| 36531 | 36531-1FC0A | Cable Assy-Parking, Rear Lh |
| OEM | Part name | Category |
|---|---|---|
| 01121-06771 | BOLT | Parking brake control (2009-02-01 ~ ; MR18DE) |
| 01125-N6121 | Bolt | Parking brake control (2009-02-01 ~ ; MR18DE) |
| 36010-1FC0A | Device Assy-Parking Brake Control | Parking brake control (2009-02-01 ~ ; MR18DE) |
| 36010-1FC1A | Device Assy-Parking Brake Control | Parking brake control (2009-02-01 ~ ; MR18DE) |
| 36402-1FC1A | Cable Assy-Parking Brake, Front | Parking brake control (2009-02-01 ~ ; MR18DE) |
| 36402-AX010 | Cable Assy-Parking Brake, Front | Parking brake control (2009-02-01 ~ ; MR18DE) |
| 36530-1FC0A | Cable Assy-Parking, Rear Rh | Parking brake control (2009-02-01 ~ ; MR18DE) |
| 36531-1FC0A | Cable Assy-Parking, Rear Lh | Parking brake control (2009-02-01 ~ ; MR18DE) |
