Z12

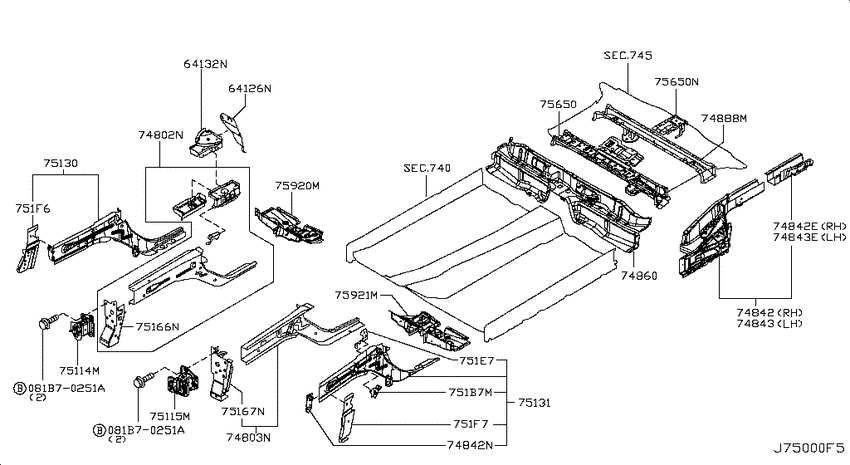

Member (2009-02-01 ~ ; W) 13
| # | OEM | Part name |
|---|---|---|
| 74842 | 75510-1FC0A | Member-Side, Rear Rh |
| 74842 | 75520-1FC0A | Extension-Side Member, Rear Rh |
| 74843 | 75511-1FC0A | Member-Side, Rear Lh |
| 74843 | 75521-1FC0A | Extension-Side Member, Rear Lh |
| 74860 | 75630-1FA0A | Member-Cross, Rear Seat |
| 74888 | 75470-1FC0A | Member-7Th Cross |
| 75114 | 75114-1FD0A | Member Assy-Front Side Front, Rh |
| 75115 | 75115-1FD0A | Member Assy-Front Side Front, Lh |
| 75130 | 75130-1FD0A | Closing Plate-Front Side Member, Rh |
| 75131 | 75131-1FD0A | Closing Plate-Front Side Member, Lh |
| 75650 | 75650-1FC0A | Member Assy-Rear Cross, Center |
| 75920 | 75940-1FA0A | Bracket-Front Suspension Mounting, Rh |
| 75921 | 75941-1FA0A | Bracket-Front Suspension Mounting, Lh |
| OEM | Part name | Category |
|---|---|---|
| 75114-1FD0A | Member Assy-Front Side Front, Rh | Member (2009-02-01 ~ ; W) |
| 75115-1FD0A | Member Assy-Front Side Front, Lh | Member (2009-02-01 ~ ; W) |
| 75130-1FD0A | Closing Plate-Front Side Member, Rh | Member (2009-02-01 ~ ; W) |
| 75131-1FD0A | Closing Plate-Front Side Member, Lh | Member (2009-02-01 ~ ; W) |
| 75470-1FC0A | Member-7Th Cross | Member (2009-02-01 ~ ; W) |
| 75510-1FC0A | Member-Side, Rear Rh | Member (2009-02-01 ~ ; W) |
| 75511-1FC0A | Member-Side, Rear Lh | Member (2009-02-01 ~ ; W) |
| 75520-1FC0A | Extension-Side Member, Rear Rh | Member (2009-02-01 ~ ; W) |
| 75521-1FC0A | Extension-Side Member, Rear Lh | Member (2009-02-01 ~ ; W) |
| 75630-1FA0A | Member-Cross, Rear Seat | Member (2009-02-01 ~ ; W) |
| 75650-1FC0A | Member Assy-Rear Cross, Center | Member (2009-02-01 ~ ; W) |
| 75940-1FA0A | Bracket-Front Suspension Mounting, Rh | Member (2009-02-01 ~ ; W) |
| 75941-1FA0A | Bracket-Front Suspension Mounting, Lh | Member (2009-02-01 ~ ; W) |
