Z12

Nissan CUBE · 2009 · 1,491 parts · 217 categories

1,491 items

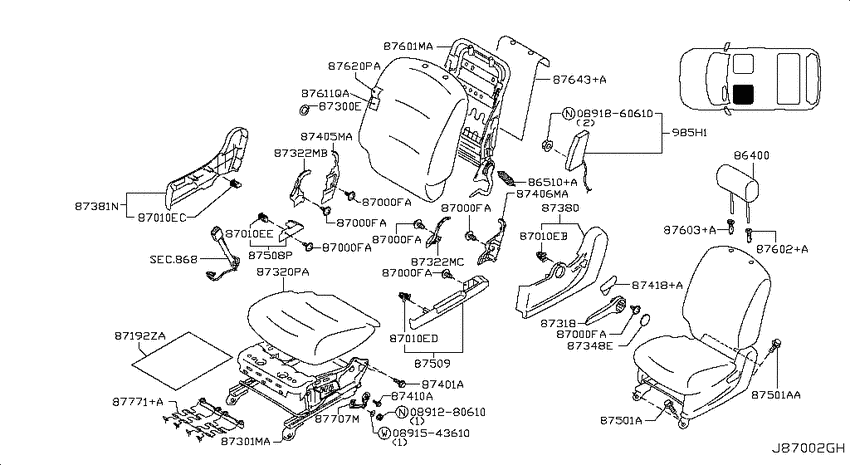

Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W) 53

#	OEM	Part name
86400	86400-1FB0A	Headrest Assy-Front Seat
86400	86400-1FB0B	Headrest Assy-Front Seat
86400	86430-1FB0A	Headrest Assy-Rear Seat
86400	86430-1FB0B	Headrest Assy-Rear Seat
86510	87496-1FA0A	Spring-Return
87000	88795-1FB0A	Screw
87000	88795-JM00A	Screw
87010	87457-1FA0A	Clip
87192	87329-1FA0A	Silencer-Front Seat
87301	87351-1FH0A	Frame Assy-Cushion, Front Seat
87318	87396-1FA0A	Lever-Lifter
87318	87396-1FA0B	Lever-Lifter
87320	87370-1FH6A	Trim & Pad Assy-Cushion, Front Seat
87320	87370-1FH6B	Trim & Pad Assy-Cushion, Front Seat
87322	87324-1FA0A	Finisher assy-rear,front cushion rh
87322	87324-1FA0B	Finisher assy-rear,front cushion rh
87322	87325-1FA0A	Finisher assy-rear,front cushion rh
87322	87325-1FA0B	Finisher assy-rear,front cushion rh
87348	87348-1FA0A	Cap-lifter knob
87348	87348-1FA0B	Cap-lifter knob
87380	87380-1FH0A	Finisher assy-cushion,front seat lh
87380	87380-1FH0B	Finisher assy-cushion,front seat lh
87381	87381-1FA0A	Finisher-cushion,front seat inner lh
87381	87381-1FA0B	Finisher-cushion,front seat inner lh
87401	86899-1FA2A	Bolt-Special
87401	86899-1FH0A	Bolt
87405	87405-1FA0A	Cover-reclining device,rh outer
87405	87405-1FA0B	Cover-reclining device,rh outer
87406	87406-1FA0A	Cover-reclining device,inner
87406	87406-1FA0B	Cover-reclining device,inner
87410	87424-1FA0A	Bolt
87418	87468-1FA0A	Knob-reclining device
87418	87468-1FA0B	Knob-reclining device
87501	86899-7992A	Bolt
87501	86899-79910	Bolt
87508	87305-1FH0A	Cover-seat slide inner,rh
87509	87304-1FH0A	Cover-seat slide outer,rh
87601	87651-1FH0A	Frame assy-front seat back
87602	87602-1FA0B	Holder assy-headrest,lock
87603	87603-1FA0B	Holder assy-headrest,free
87611	87661-1FH0A	Pad-front seat back
87620	87620-1FB5A	Trim assy-front seat back
87620	87620-1FB5B	Trim assy-front seat back
87620	87670-1FB5A	Trim assy-front seat back
87620	87670-1FB5B	Trim assy-front seat back
87620	87620-1FD5A	Trim assy-front seat back
87620	87620-1FD5B	Trim assy-front seat back
87620	87670-1FD5A	Trim assy-front seat back
87620	87670-1FD5B	Trim assy-front seat back
87643	87643-1FA0A	Supporter-front seat back
87707	87458-1FH0A	Link assy-lh
87771	87355-1FA0A	Frame assy-front seat cushion,center
891543610	08915-43610	ワツシヤ-,プレ-ン

OEM	Part name	Category
08915-43610	ワツシヤ-,プレ-ン	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
86400-1FB0A	Headrest Assy-Front Seat	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
86400-1FB0B	Headrest Assy-Front Seat	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
86430-1FB0A	Headrest Assy-Rear Seat	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
86430-1FB0B	Headrest Assy-Rear Seat	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
86899-1FA2A	Bolt-Special	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
86899-1FH0A	Bolt	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
86899-79910	Bolt	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
86899-7992A	Bolt	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87304-1FH0A	Cover-seat slide outer,rh	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87305-1FH0A	Cover-seat slide inner,rh	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87324-1FA0A	Finisher assy-rear,front cushion rh	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87324-1FA0B	Finisher assy-rear,front cushion rh	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87325-1FA0A	Finisher assy-rear,front cushion rh	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87325-1FA0B	Finisher assy-rear,front cushion rh	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87329-1FA0A	Silencer-Front Seat	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87348-1FA0A	Cap-lifter knob	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87348-1FA0B	Cap-lifter knob	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87351-1FH0A	Frame Assy-Cushion, Front Seat	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87355-1FA0A	Frame assy-front seat cushion,center	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87370-1FH6A	Trim & Pad Assy-Cushion, Front Seat	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87370-1FH6B	Trim & Pad Assy-Cushion, Front Seat	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87380-1FH0A	Finisher assy-cushion,front seat lh	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87380-1FH0B	Finisher assy-cushion,front seat lh	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87381-1FA0A	Finisher-cushion,front seat inner lh	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87381-1FA0B	Finisher-cushion,front seat inner lh	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87396-1FA0A	Lever-Lifter	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87396-1FA0B	Lever-Lifter	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87405-1FA0A	Cover-reclining device,rh outer	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87405-1FA0B	Cover-reclining device,rh outer	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87406-1FA0A	Cover-reclining device,inner	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87406-1FA0B	Cover-reclining device,inner	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87424-1FA0A	Bolt	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87457-1FA0A	Clip	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87458-1FH0A	Link assy-lh	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87468-1FA0A	Knob-reclining device	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87468-1FA0B	Knob-reclining device	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87496-1FA0A	Spring-Return	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87602-1FA0B	Holder assy-headrest,lock	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87603-1FA0B	Holder assy-headrest,free	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87620-1FB5A	Trim assy-front seat back	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87620-1FB5B	Trim assy-front seat back	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87620-1FD5A	Trim assy-front seat back	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87620-1FD5B	Trim assy-front seat back	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87643-1FA0A	Supporter-front seat back	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87651-1FH0A	Frame assy-front seat back	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87661-1FH0A	Pad-front seat back	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87670-1FB5A	Trim assy-front seat back	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87670-1FB5B	Trim assy-front seat back	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87670-1FD5A	Trim assy-front seat back	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
87670-1FD5B	Trim assy-front seat back	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
88795-1FB0A	Screw	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)
88795-JM00A	Screw	Front seat (2009-02-01 ~ 2009-10-01; LH SEAT(W/0 ARMREST); W)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 217
Collected: 2026-07-27
