Z12

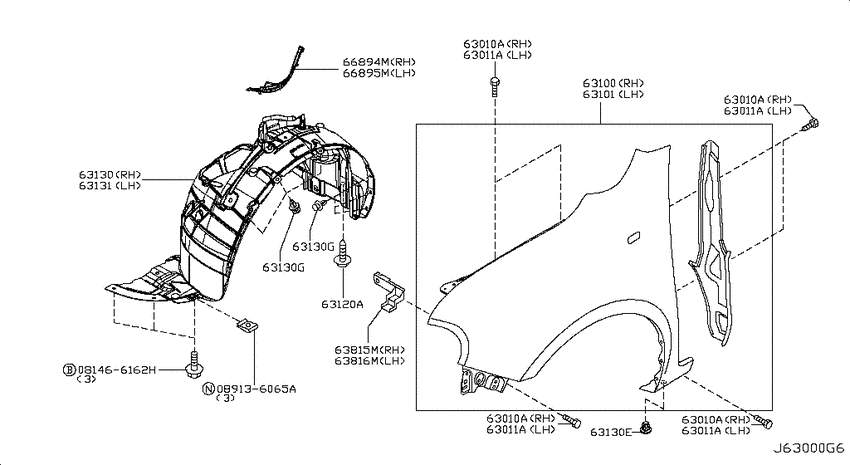

Front fender & fitting (2010-01-01 ~ ; W) 9
| # | OEM | Part name |
|---|---|---|
| 63130 | 63842-1FA0A | Protector-Front Fender, Rh |
| 63130 | 01553-05933 | CLIP |
| 63131 | 63843-1FA0A | Protector-Front Fender, Lh |
| 63815 | 63826-1FA0A | Spacer-Front Fender, Rh |
| 63815 | 63826-1FA0B | Spacer-Front Fender, Rh |
| 63816 | 63827-1FA0A | Spacer-Front Fender, Lh |
| 63816 | 63827-1FA0B | Spacer-Front Fender, Lh |
| 66894 | 66894-1FA0A | Cover-Front Fender, Rh |
| 66895 | 66895-1FA0A | Cover-Front Fender, Lh |
| OEM | Part name | Category |
|---|---|---|
| 01553-05933 | CLIP | Front fender & fitting (2010-01-01 ~ ; W) |
| 63826-1FA0A | Spacer-Front Fender, Rh | Front fender & fitting (2010-01-01 ~ ; W) |
| 63826-1FA0B | Spacer-Front Fender, Rh | Front fender & fitting (2010-01-01 ~ ; W) |
| 63827-1FA0A | Spacer-Front Fender, Lh | Front fender & fitting (2010-01-01 ~ ; W) |
| 63827-1FA0B | Spacer-Front Fender, Lh | Front fender & fitting (2010-01-01 ~ ; W) |
| 63842-1FA0A | Protector-Front Fender, Rh | Front fender & fitting (2010-01-01 ~ ; W) |
| 63843-1FA0A | Protector-Front Fender, Lh | Front fender & fitting (2010-01-01 ~ ; W) |
| 66894-1FA0A | Cover-Front Fender, Rh | Front fender & fitting (2010-01-01 ~ ; W) |
| 66895-1FA0A | Cover-Front Fender, Lh | Front fender & fitting (2010-01-01 ~ ; W) |
