Search › Model › Z12
Z12

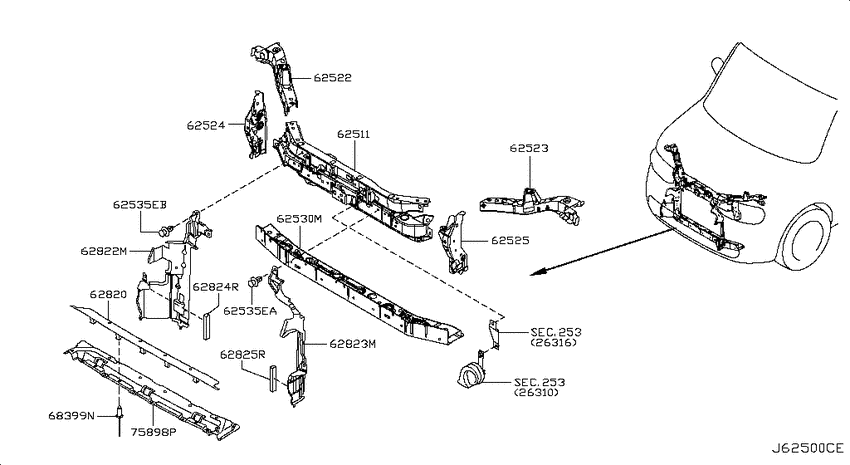

Front apron & radiator core support (2009-02-01 ~ 2009-07-01; KROM; W) 7
| # | OEM | Part name |
|---|---|---|
| 62511 | 62511-1FA0H | Support-Radiator Core, Upper |
| 62524 | 62540-1FA0A | Reinforce-Radiator Core Side, Rh |
| 62525 | 62541-1FA0A | Reinforce-Radiator Core Side, Lh |
| 62530 | 62530-1FC0H | Support-Radiator Core, Lower |
| 62535 | 01553-05933 | CLIP |
| 62822 | 62822-1FC0A | Air Guide-Front, Rh |
| 62823 | 62823-1FC0A | Air Guide-Front, Lh |
| OEM | Part name | Category |
|---|---|---|
| 01553-05933 | CLIP | Front apron & radiator core support (2009-02-01 ~ 2009-07-01; KROM; W) |
| 62511-1FA0H | Support-Radiator Core, Upper | Front apron & radiator core support (2009-02-01 ~ 2009-07-01; KROM; W) |
| 62530-1FC0H | Support-Radiator Core, Lower | Front apron & radiator core support (2009-02-01 ~ 2009-07-01; KROM; W) |
| 62540-1FA0A | Reinforce-Radiator Core Side, Rh | Front apron & radiator core support (2009-02-01 ~ 2009-07-01; KROM; W) |
| 62541-1FA0A | Reinforce-Radiator Core Side, Lh | Front apron & radiator core support (2009-02-01 ~ 2009-07-01; KROM; W) |
| 62822-1FC0A | Air Guide-Front, Rh | Front apron & radiator core support (2009-02-01 ~ 2009-07-01; KROM; W) |
| 62823-1FC0A | Air Guide-Front, Lh | Front apron & radiator core support (2009-02-01 ~ 2009-07-01; KROM; W) |
