Search › Model › Z12
Z12

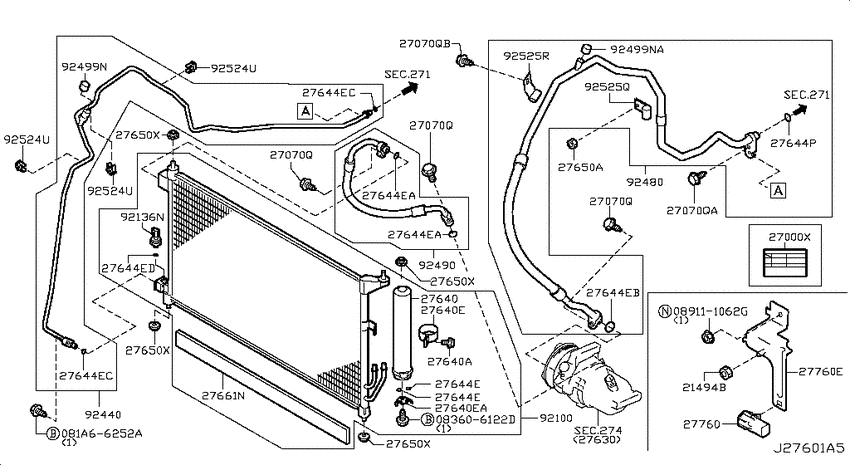

Condensor, liquid tank (2009-10-01 ~ ; W) 10
| # | OEM | Part name |
|---|---|---|
| 27000 | 27090-C990A | Label-Caution, Air Conditioner |
| 27070 | 01125-N6031 | Bolt |
| 27644 | 92471-N8210 | O Ring |
| 27661 | 92182-1FA0A | Seal-Rubber |
| 27760 | 27715-1FA0A | Bracket-Ambient Sensor |
| 92480 | 92480-1FD0A | Hose-flexible,low |
| 92524 | 46271-EW80A | Clip |
| 92525 | 92551-1FA0A | Clip |
| 92525 | 92553-1FA0A | Clip |
| 83606122 | 08360-6122D | Screw |
| OEM | Part name | Category |
|---|---|---|
| 01125-N6031 | Bolt | Condensor, liquid tank (2009-10-01 ~ ; W) |
| 08360-6122D | Screw | Condensor, liquid tank (2009-10-01 ~ ; W) |
| 27090-C990A | Label-Caution, Air Conditioner | Condensor, liquid tank (2009-10-01 ~ ; W) |
| 27715-1FA0A | Bracket-Ambient Sensor | Condensor, liquid tank (2009-10-01 ~ ; W) |
| 46271-EW80A | Clip | Condensor, liquid tank (2009-10-01 ~ ; W) |
| 92182-1FA0A | Seal-Rubber | Condensor, liquid tank (2009-10-01 ~ ; W) |
| 92471-N8210 | O Ring | Condensor, liquid tank (2009-10-01 ~ ; W) |
| 92480-1FD0A | Hose-flexible,low | Condensor, liquid tank (2009-10-01 ~ ; W) |
| 92551-1FA0A | Clip | Condensor, liquid tank (2009-10-01 ~ ; W) |
| 92553-1FA0A | Clip | Condensor, liquid tank (2009-10-01 ~ ; W) |
