Z12

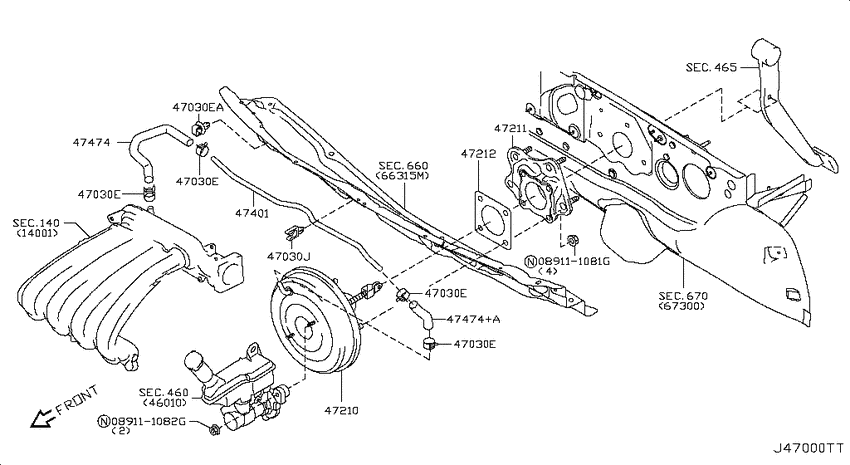

Brake servo & servo control (2009-02-01 ~ ; MR18DE) 7
| # | OEM | Part name |
|---|---|---|
| 47030 | 47476-4M400 | Clip |
| 47030 | 47492-01N00 | Clamp |
| 47211 | 47211-AX701 | Spacer-Brake Booster |
| 47212 | 47212-4CE0A | Packing-Booster |
| 47401 | 47401-1FD0A | Tube-Booster To Tank |
| 47474 | 47474-EE900 | Hose-Booster |
| 47474 | 47471-1FD0A | Hose-Booster |
| OEM | Part name | Category |
|---|---|---|
| 47211-AX701 | Spacer-Brake Booster | Brake servo & servo control (2009-02-01 ~ ; MR18DE) |
| 47212-4CE0A | Packing-Booster | Brake servo & servo control (2009-02-01 ~ ; MR18DE) |
| 47401-1FD0A | Tube-Booster To Tank | Brake servo & servo control (2009-02-01 ~ ; MR18DE) |
| 47471-1FD0A | Hose-Booster | Brake servo & servo control (2009-02-01 ~ ; MR18DE) |
| 47474-EE900 | Hose-Booster | Brake servo & servo control (2009-02-01 ~ ; MR18DE) |
| 47476-4M400 | Clip | Brake servo & servo control (2009-02-01 ~ ; MR18DE) |
| 47492-01N00 | Clamp | Brake servo & servo control (2009-02-01 ~ ; MR18DE) |
