Z12

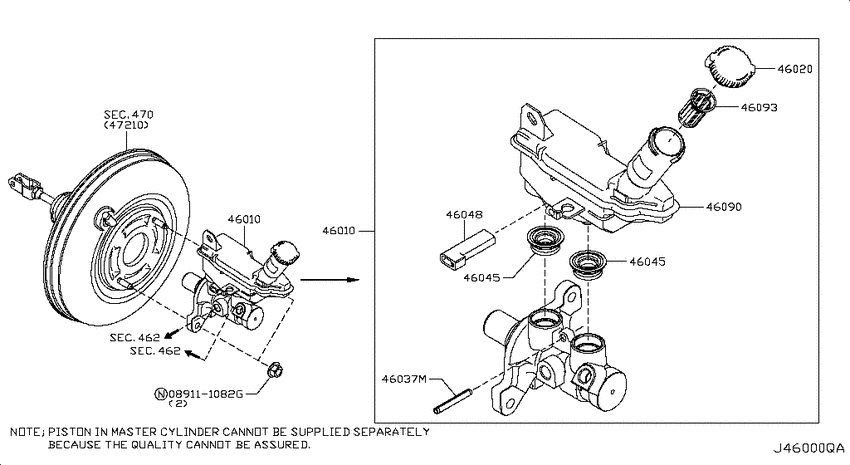

Brake master cylinder (2009-02-01 ~ ; MR18DE) 6
| # | OEM | Part name |
|---|---|---|
| 46020 | 46020-EM30A | Cap Assy-Oil Reservoir Tank |
| 46020 | 01125-N8021 | Bolt |
| 46037 | 46037-AD000 | Pin-Spring |
| 46048 | 46048-64J01 | Indicator Assy-Level |
| 46090 | 46091-1FE0D | Tank Assy-Brake Oil Reservoir |
| 46093 | 46093-0T001 | Strainer-Brake Oil |
| OEM | Part name | Category |
|---|---|---|
| 01125-N8021 | Bolt | Brake master cylinder (2009-02-01 ~ ; MR18DE) |
| 46020-EM30A | Cap Assy-Oil Reservoir Tank | Brake master cylinder (2009-02-01 ~ ; MR18DE) |
| 46037-AD000 | Pin-Spring | Brake master cylinder (2009-02-01 ~ ; MR18DE) |
| 46048-64J01 | Indicator Assy-Level | Brake master cylinder (2009-02-01 ~ ; MR18DE) |
| 46091-1FE0D | Tank Assy-Brake Oil Reservoir | Brake master cylinder (2009-02-01 ~ ; MR18DE) |
| 46093-0T001 | Strainer-Brake Oil | Brake master cylinder (2009-02-01 ~ ; MR18DE) |
