Z11A

Mitsubishi 3000GT · 1990 · 4,011 parts · 226 categories
Z11A ×

← Back to categories

4,011 items

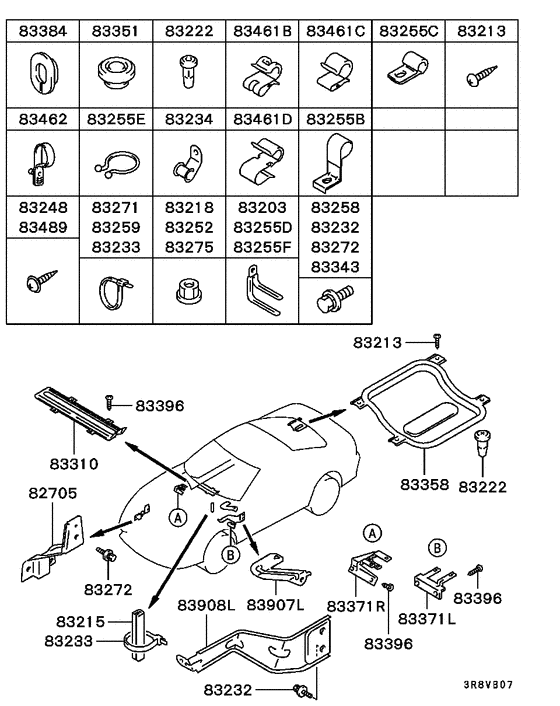

Wiring & attaching parts (ATTACHING PARTS) 51
#OEMPart name
82705 MB629293 BRACKET, RELAY BOX
83203 MB043630 CLIP, CRUISE CONTROL EQUIP - 8.5-40/55
83203 MB305867 CLIP, SPEEDOMETER CABLE - 8.5-50/65
83213 MF453033 SCREW, TAPPING, 5x16 - Tapping,5x16
83215 MB863112 PROTECTOR, CHASSIS HARNESS - L=30
83218 MS440133 NUT, FUEL TANK - Flange,6
83218 MS440502 NUT, FUEL TANK - Washer assembled,6
83222 MU480009 GROMMET, BODY WIRING - 5
83232 MB249413 BOLT, FUEL LINE - Washer assembled (earth),6x16
83232 MB330946 BOLT, FUEL LINE - Washer assembled,6x20
83232 MS240121 BOLT, CONNROD - Washer assembled,6x16
83233 MB249340 BAND, FUEL TANK PROTECTOR - L=219.5
83234 MD146751 CLAMP, ENG WIRING
83248 MS450156 SCREW, CRUISE CONTROL ELECTRICALS - Tapping(flange head),5x12
83255 MB344011 CLIP, BODY WIRING - 6.6-30/60
83255 MB649196 CLIP,CHASSIS WIRING
83255 MB243269 CLIP, FUEL RETURN LINE - D=10
83255 MF477030 CLIP, EMISSION CONTROL EQUIP - D=30
83255 MF477031 CLIP, ENG BREATHER - D=35
83255 MB627838 CLIP, A/T CASE - 10.5-75/100
83255 MS470361 CLIP, FUEL VAPOR CONTROL LINE - 11
83255 MS470362 CLIP, WATER HEATER - 20
83255 MB113038 CLIP, EMISSION VACUUM CONTROL EQUIP - 6.6-40/55
83258 MB133273 BOLT, FUEL LINE - Washer assembled,6x16
83258 MF240049 BOLT, ENG BREATHER - Washer assembled,8x12
83258 MS240631 BOLT, FUEL FILLER LID PANEL - Washer assembled,6x16
83259 MB249338 BAND, ROCKER COVER - L=129.5
83259 MB249339 BAND, ENG BREATHER - L=169.5
83271 MS470085 BAND, FUEL RETURN LINE - 156
83272 MF140722 BOLT, ACCEL CABLE SUPPORT - Flange,6x10
83272 MF241824 BOLT, ROCKER COVER - Washer assembled,6x14
83272 MF243623 BOLT, FLYWHEEL HOUSING - Washer assembled,6x14
83272 MS240122 BOLT, ENG FR MOUNTING - Washer assembled,6x20
83275 MB286274 NUT, ENG WIRING - 6
83310 MB629294 COVER, CONTROL HARNESS
83343 MF243622 BOLT, ROCKER COVER - Washer assembled,6x12
83351 MB229867 PLUG, DOOR WIRING - Taper,rubber,d=36
83358 MB629299 COVER, FUEL GAUGE UNIT TOOLING HOLE
83371 MB649023 BRACKET,INSTRUMENT PANEL HARNESS CONNECTOR,LH - DRIVER SIDE
83371 MB649107 BRACKET,INSTRUMENT PANEL HARNESS CONNECTOR,RH - PASSENGER SIDE
83384 MB306580 GROMMET, CHASSIS WIRING - 66.5x75.5(28x36)
83384 MB381930 GROMMET, ABS CONTROL EQUIP - 65.5x75.5(15x23)
83384 MB904342 GROMMET, WIRING - 66.5x75.5(28x36)
83384 MB904343 GROMMET, CHASSIS WIRING - 66.5x75.5(15x23)
83396 MF453031 SCREW 5x12 - Tapping,5x12
83461 MB622121 CLIP, RR GATE WIRING
83461 MB622122 CLIP, RR GATE WIRING
83461 MU802657 CLIP, RR GATE WIRING
83462 MS470402 CLIP, WIRING, NO.2
83907 MB649021 BRACKET,JUNCTION BLOCK,UPR LH
83908 MB629291 BRACKET,JUNCTION BLOCK,LWR LH
