Search › Model › Z11A
Z11A

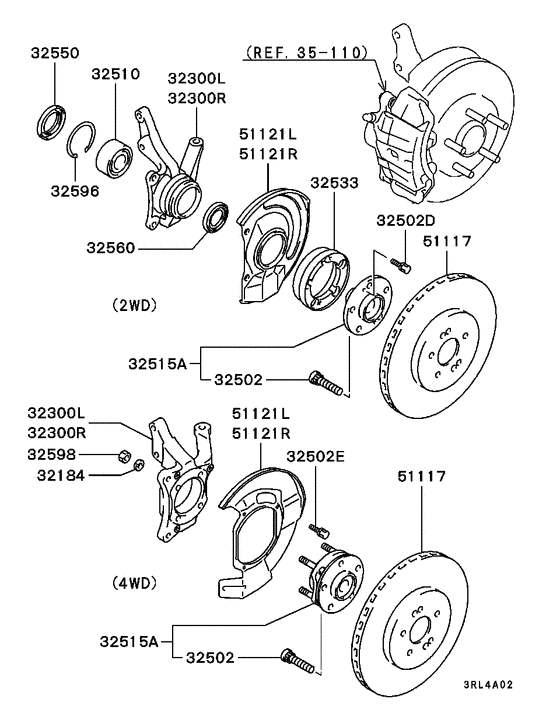

Front axle hub & drum (ALL) 14
| # | OEM | Part name |
|---|---|---|
| 32300 | MB892345 | KNUCKLE,LH |
| 32300 | MB892346 | KNUCKLE,RH |
| 32502 | MB303869 | BOLT, FR WHEEL HUB - 12x45 |
| 32502 | MB911495 | BOLT, FR WHEEL HUB - 12x43 |
| 32502 | MB808031 | BOLT, FR WHEEL HUB |
| 32510 | MB633430 | BEARING, FR WHEEL HUB - Angular contact ball,84x39-45 |
| 32515 | MB808235 | HUB ASSY, FR WHEEL |
| 32550 | MB633432 | OIL SEAL, FR WHEEL HUB, INR |
| 32560 | MB633434 | OIL SEAL, FR WHEEL HUB, OTR |
| 32596 | MB633435 | SNAP RING, FR WHEEL HUB - 77.5 |
| 51117 | MB895097 | DISC, FR BRAKE - 15; |
| 51117 | MB928319 | DISC, FR BRAKE |
| 51121 | MB618894 | COVER, FR BRAKE DISC, LH |
| 51121 | MB618895 | COVER, FR BRAKE DISC, RH |
| OEM | Part name | Category |
|---|---|---|
| MB303869 | BOLT, FR WHEEL HUB - 12x45 | Front axle hub & drum (ALL) |
| MB618894 | COVER, FR BRAKE DISC, LH | Front axle hub & drum (ALL) |
| MB618895 | COVER, FR BRAKE DISC, RH | Front axle hub & drum (ALL) |
| MB633430 | BEARING, FR WHEEL HUB - Angular contact ball,84x39-45 | Front axle hub & drum (ALL) |
| MB633432 | OIL SEAL, FR WHEEL HUB, INR | Front axle hub & drum (ALL) |
| MB633434 | OIL SEAL, FR WHEEL HUB, OTR | Front axle hub & drum (ALL) |
| MB633435 | SNAP RING, FR WHEEL HUB - 77.5 | Front axle hub & drum (ALL) |
| MB808031 | BOLT, FR WHEEL HUB | Front axle hub & drum (ALL) |
| MB808235 | HUB ASSY, FR WHEEL | Front axle hub & drum (ALL) |
| MB892345 | KNUCKLE,LH | Front axle hub & drum (ALL) |
| MB892346 | KNUCKLE,RH | Front axle hub & drum (ALL) |
| MB895097 | DISC, FR BRAKE - 15; | Front axle hub & drum (ALL) |
| MB911495 | BOLT, FR WHEEL HUB - 12x43 | Front axle hub & drum (ALL) |
| MB928319 | DISC, FR BRAKE | Front axle hub & drum (ALL) |
