Z11A

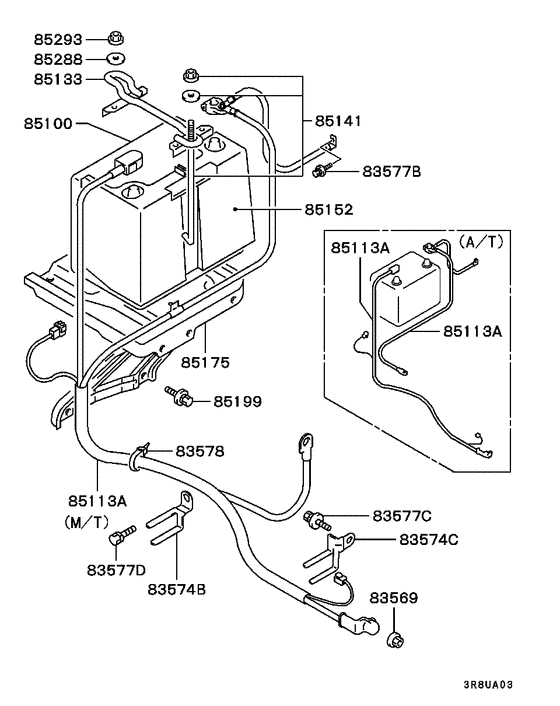

Battery cable & bracket 20
| # | OEM | Part name |
|---|---|---|
| 83569 | MS440134 | NUT, CARB - Flange,8 |
| 83574 | MB627838 | CLIP, A/T CASE - 10.5-75/100 |
| 83574 | MB572238 | CLIP, BATTERY WIRING - 55 |
| 83577 | MB249413 | BOLT, FUEL LINE - Washer assembled (earth),6x16 |
| 83577 | MB330946 | BOLT, FUEL LINE - Washer assembled,6x20 |
| 83577 | MF243680 | BOLT, ENG RR MOUNTING - Washer assembled,10x25 |
| 83577 | MF240049 | BOLT, ENG BREATHER - Washer assembled,8x12 |
| 83578 | MB249338 | BAND, ROCKER COVER - L=129.5 |
| 85100 | MB572778 | BATTERY |
| 85100 | MR158275 | BATTERY |
| 85113 | MB629314 | CABLE ASSY, BATTERY WIRING - (-) |
| 85113 | MR159717 | CABLE ASSY, BATTERY WIRING - (+) |
| 85133 | MB629296 | HOLDER, BATTERY - 176(225) |
| 85141 | MB241963 | L-BOLT KIT, BATTERY - 6x238 |
| 85152 | MB629298 | SEAT, BATTERY - Z10a |
| 85175 | MB640900 | TRAY, BATTERY |
| 85199 | MS240125 | BOLT, FUEL TANK - Washer assembled,8x20 |
| 85288 | MF450271 | WASHER, FUEL LINE - Plain,6 |
| 85293 | MF430004 | NUT, ENG OIL PAN - 6 |
| 85293 | MS440502 | NUT, FUEL TANK - Washer assembled,6 |
| OEM | Part name | Category |
|---|---|---|
| MB241963 | L-BOLT KIT, BATTERY - 6x238 | Battery cable & bracket |
| MB249338 | BAND, ROCKER COVER - L=129.5 | Battery cable & bracket |
| MB249413 | BOLT, FUEL LINE - Washer assembled (earth),6x16 | Battery cable & bracket |
| MB330946 | BOLT, FUEL LINE - Washer assembled,6x20 | Battery cable & bracket |
| MB572238 | CLIP, BATTERY WIRING - 55 | Battery cable & bracket |
| MB572778 | BATTERY | Battery cable & bracket |
| MB627838 | CLIP, A/T CASE - 10.5-75/100 | Battery cable & bracket |
| MB629296 | HOLDER, BATTERY - 176(225) | Battery cable & bracket |
| MB629298 | SEAT, BATTERY - Z10a | Battery cable & bracket |
| MB629314 | CABLE ASSY, BATTERY WIRING - (-) | Battery cable & bracket |
| MB640900 | TRAY, BATTERY | Battery cable & bracket |
| MF240049 | BOLT, ENG BREATHER - Washer assembled,8x12 | Battery cable & bracket |
| MF243680 | BOLT, ENG RR MOUNTING - Washer assembled,10x25 | Battery cable & bracket |
| MF430004 | NUT, ENG OIL PAN - 6 | Battery cable & bracket |
| MF450271 | WASHER, FUEL LINE - Plain,6 | Battery cable & bracket |
| MR158275 | BATTERY | Battery cable & bracket |
| MR159717 | CABLE ASSY, BATTERY WIRING - (+) | Battery cable & bracket |
| MS240125 | BOLT, FUEL TANK - Washer assembled,8x20 | Battery cable & bracket |
| MS440134 | NUT, CARB - Flange,8 | Battery cable & bracket |
| MS440502 | NUT, FUEL TANK - Washer assembled,6 | Battery cable & bracket |
