Z10

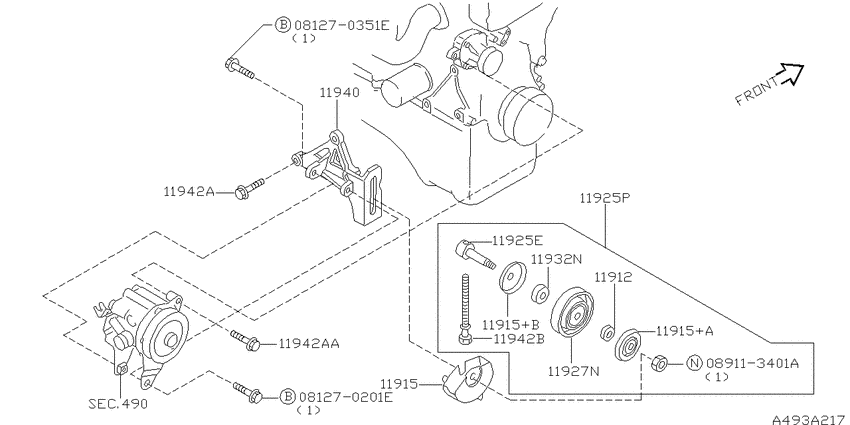

Power steering pump mounting (2000-09-01 ~ ; W) 7
| # | OEM | Part name |
|---|---|---|
| 11915 | 11929-41B06 | Cover-Dust |
| 11925 | 11928-AN301 | Shaft-Idler Pulley |
| 11927 | 11927-AN301 | PULLEYIDLER |
| 11940 | 11940-AN300 | Bracket-Power Steering Oil Pump |
| 11942 | 01121-05901 | BOLT |
| 11942 | 01121-06451 | BOLT |
| 81270351 | 08127-0351E | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 01121-05901 | BOLT | Power steering pump mounting (2000-09-01 ~ ; W) |
| 01121-06451 | BOLT | Power steering pump mounting (2000-09-01 ~ ; W) |
| 08127-0351E | Bolt-hexagon | Power steering pump mounting (2000-09-01 ~ ; W) |
| 11927-AN301 | PULLEYIDLER | Power steering pump mounting (2000-09-01 ~ ; W) |
| 11928-AN301 | Shaft-Idler Pulley | Power steering pump mounting (2000-09-01 ~ ; W) |
| 11929-41B06 | Cover-Dust | Power steering pump mounting (2000-09-01 ~ ; W) |
| 11940-AN300 | Bracket-Power Steering Oil Pump | Power steering pump mounting (2000-09-01 ~ ; W) |
