Search › Model › Z10

Z10

Nissan CUBE-CUBE-CUBIC · 1998 · 1,904 parts · 209 categories

1,904 items

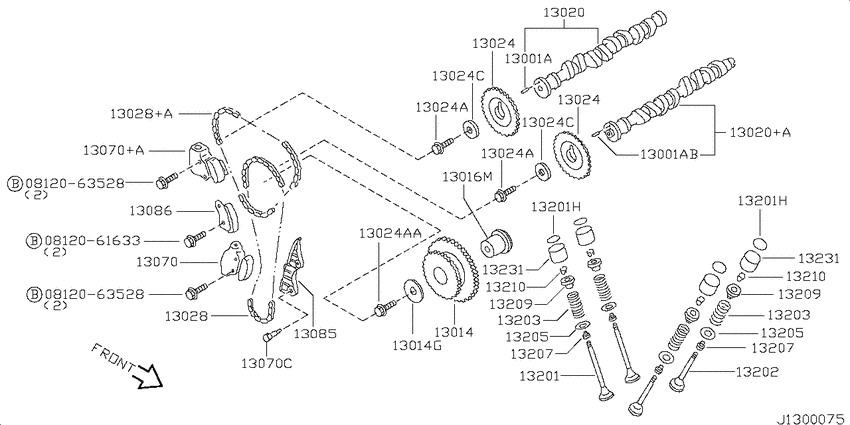

Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE) 83

#	OEM	Part name
13014	13077-41B10	Gear-Idler
13014	13011-53Y01	Plate-Idler Gear
13016	13016-53Y01	Shaft-Idler Gear
13020	13020-2U800	カムシヤフトアツセンブリ-
13020	13020-2U810	カムシヤフトアツセンブリ-
13024	13024-41B02	GEAR CAMSHAFT
13024	13012-53Y00	Bolt-Sprocket, Camshaft
13024	13012-41B00	Bolt-Sprocket, Camshaft
13024	13013-53Y00	Washer-Plain
13070	13070-2U500	Tensioner Assy-Chain
13070	13070-AN200	Tensioner Assy-Chain
13201	13201-AN200	Valve-Intake
13201	13229-53C00	Shim-Valve
13201	13229-53C01	Shim-Valve
13201	13229-53C02	Shim-Valve
13201	13229-53C03	Shim-Valve
13201	13229-53C04	Shim-Valve
13201	13229-53C06	Shim-Valve
13201	13229-53Y00	Shim-Valve
13201	13229-53Y02	Shim-Valve
13201	13229-53Y03	Shim-Valve
13201	13229-53Y04	Shim-Valve
13201	13229-53Y05	Shim-Valve
13201	13229-53Y06	Shim-Valve
13201	13229-53Y07	Shim-Valve
13201	13229-53Y08	Shim-Valve
13201	13229-53Y09	Shim-Valve
13201	13229-53Y10	Shim-Valve
13201	13229-53Y11	Shim-Valve
13201	13229-53Y12	Shim-Valve
13201	13229-53Y13	Shim-Valve
13201	13229-53Y14	Shim-Valve
13201	13229-53Y15	Shim-Valve
13201	13229-53Y16	Shim-Valve
13201	13229-53Y17	Shim-Valve
13201	13229-53Y18	Shim-Valve
13201	13229-53Y19	Shim-Valve
13201	13229-53Y20	Shim-Valve
13201	13229-53Y21	Shim-Valve
13201	13229-53Y22	Shim-Valve
13201	13229-53Y23	Shim-Valve
13201	13229-53Y24	Shim-Valve
13201	13229-53Y61	Shim-Valve
13201	13229-53Y64	Shim-Valve
13201	13229-53Y65	Shim-Valve
13201	13229-53Y66	Shim-Valve
13201	13229-53Y67	Shim-Valve
13201	13229-53Y69	Shim-Valve
13201	13229-53Y70	Shim-Valve
13201	13229-53Y71	Shim-Valve
13201	13229-53Y72	Shim-Valve
13201	13229-53Y73	Shim-Valve
13201	13229-53Y74	Shim-Valve
13201	13229-53Y75	Shim-Valve
13201	13229-53Y76	Shim-Valve
13201	13229-73Y00	Shim-Valve
13201	13229-73Y01	Shim-Valve
13201	13229-73Y02	Shim-Valve
13201	13229-73Y03	Shim-Valve
13201	13229-73Y04	Shim-Valve
13201	13229-73Y05	Shim-Valve
13201	13229-73Y06	Shim-Valve
13201	13229-73Y07	Shim-Valve
13201	13229-73Y08	Shim-Valve
13201	13229-73Y09	Shim-Valve
13201	13229-73Y10	Shim-Valve
13201	13229-73Y11	Shim-Valve
13201	13229-73Y12	Shim-Valve
13201	13229-73Y13	Shim-Valve
13201	13229-73Y15	Shim-Valve
13201	13229-73Y18	Shim-Valve
13201	13229-73Y19	Shim-Valve
13201	13229-73Y20	Shim-Valve
13201	13229-73Y22	Shim-Valve
13202	13202-AN200	Valve-Exhaust
13203	13203-AN200	Spring-Valve, Outer
13205	13205-53Y00	Seat-Valve Spring, Outer
13207	13207-53Y10	Seal-Oil, Valve
13209	13209-53Y00	Retainer-valve spring
13210	13210-53Y00	Collet-Valve Spring
812061633	08120-61633	Bolt-hexagon
812061633	08120-6161F	Bolt-hexagon
812063528	08120-63528	Bolt-hexagon

OEM	Part name	Category
08120-6161F	Bolt-hexagon	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
08120-61633	Bolt-hexagon	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
08120-63528	Bolt-hexagon	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13011-53Y01	Plate-Idler Gear	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13012-41B00	Bolt-Sprocket, Camshaft	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13012-53Y00	Bolt-Sprocket, Camshaft	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13013-53Y00	Washer-Plain	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13016-53Y01	Shaft-Idler Gear	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13020-2U800	カムシヤフトアツセンブリ-	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13020-2U810	カムシヤフトアツセンブリ-	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13024-41B02	GEAR CAMSHAFT	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13070-2U500	Tensioner Assy-Chain	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13070-AN200	Tensioner Assy-Chain	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13077-41B10	Gear-Idler	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13201-AN200	Valve-Intake	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13202-AN200	Valve-Exhaust	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13203-AN200	Spring-Valve, Outer	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13205-53Y00	Seat-Valve Spring, Outer	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13207-53Y10	Seal-Oil, Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13209-53Y00	Retainer-valve spring	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13210-53Y00	Collet-Valve Spring	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53C00	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53C01	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53C02	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53C03	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53C04	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53C06	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y00	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y02	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y03	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y04	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y05	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y06	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y07	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y08	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y09	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y10	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y11	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y12	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y13	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y14	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y15	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y16	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y17	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y18	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y19	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y20	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y21	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y22	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y23	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y24	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y61	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y64	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y65	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y66	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y67	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y69	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y70	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y71	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y72	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y73	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y74	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y75	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-53Y76	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-73Y00	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-73Y01	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-73Y02	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-73Y03	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-73Y04	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-73Y05	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-73Y06	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-73Y07	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-73Y08	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-73Y09	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-73Y10	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-73Y11	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-73Y12	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-73Y13	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-73Y15	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-73Y18	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-73Y19	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-73Y20	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)
13229-73Y22	Shim-Valve	Camshaft & valve mechanism (2000-09-01 ~ ; CGA3DE)

Source: Public OEM parts-catalog data
Variants: 2 / 23
Category: 209
Collected: 2026-07-27
