Z10

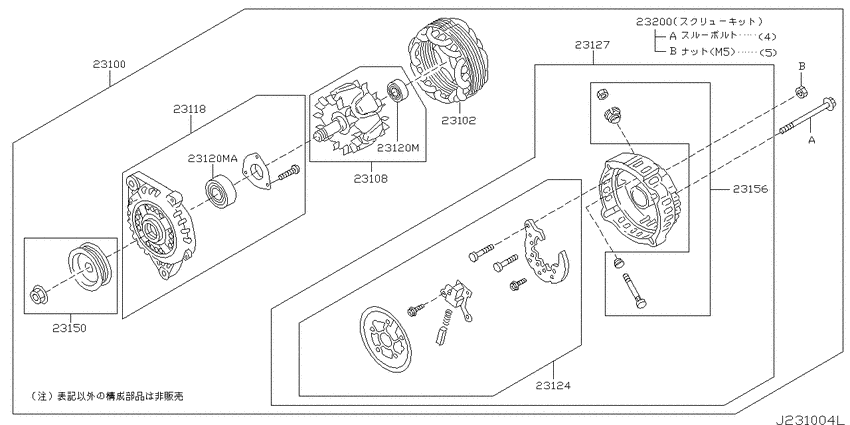

Alternator (2000-09-01 ~ ; CGA3DE) 12
| # | OEM | Part name |
|---|---|---|
| 23100 | 23100-AP000 | Alternator Assy |
| 23102 | 23102-86R00 | Stator Assy |
| 23108 | 23108-0M000 | Rotor Assy |
| 23108 | 23108-4M40A | Rotor Assy |
| 23118 | 23118-AN000 | Cover Assy-Front |
| 23120 | 23120-2W200 | Bearing-Ball |
| 23120 | 23120-0M005 | Bearing-Ball |
| 23124 | 23124-AP001 | Rectifier Assy |
| 23127 | 23127-AP001 | Cover Assy-Rear |
| 23150 | 23150-AN000 | Pulley Assy |
| 23156 | 23156-65F00 | Terminal Assy-B |
| 23200 | 23200-0M000 | Screw Set |
| OEM | Part name | Category |
|---|---|---|
| 23100-AP000 | Alternator Assy | Alternator (2000-09-01 ~ ; CGA3DE) |
| 23102-86R00 | Stator Assy | Alternator (2000-09-01 ~ ; CGA3DE) |
| 23108-0M000 | Rotor Assy | Alternator (2000-09-01 ~ ; CGA3DE) |
| 23108-4M40A | Rotor Assy | Alternator (2000-09-01 ~ ; CGA3DE) |
| 23118-AN000 | Cover Assy-Front | Alternator (2000-09-01 ~ ; CGA3DE) |
| 23120-0M005 | Bearing-Ball | Alternator (2000-09-01 ~ ; CGA3DE) |
| 23120-2W200 | Bearing-Ball | Alternator (2000-09-01 ~ ; CGA3DE) |
| 23124-AP001 | Rectifier Assy | Alternator (2000-09-01 ~ ; CGA3DE) |
| 23127-AP001 | Cover Assy-Rear | Alternator (2000-09-01 ~ ; CGA3DE) |
| 23150-AN000 | Pulley Assy | Alternator (2000-09-01 ~ ; CGA3DE) |
| 23156-65F00 | Terminal Assy-B | Alternator (2000-09-01 ~ ; CGA3DE) |
| 23200-0M000 | Screw Set | Alternator (2000-09-01 ~ ; CGA3DE) |
