Search › Model › YY61
YY61

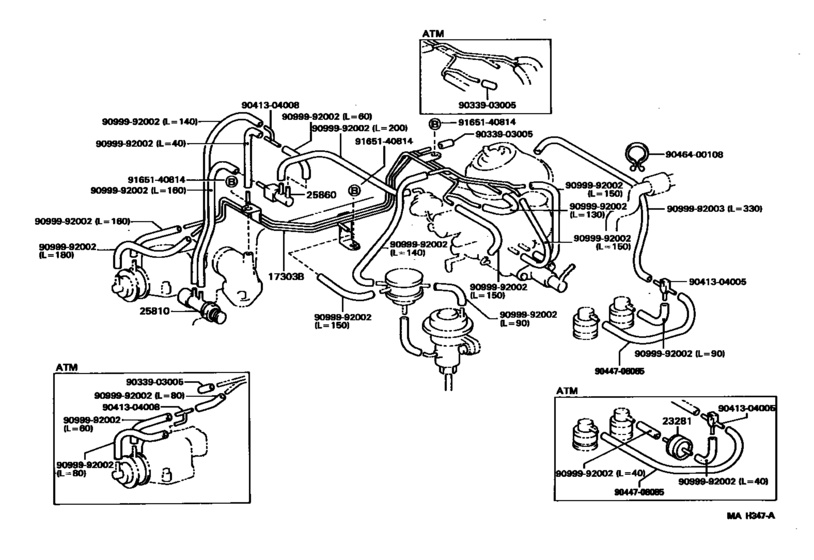

Vacuum Piping ([06.1994 - ] (9406- )3YP) 13
| # | OEM | Part name |
|---|---|---|
| 17303 | 17303-73071 | Pipe Sub-Assy, Air, No.1 |
| 23281 | 90925-01021 | Valve, Vacuum Transmitting, No.1 |
| 25810 | 25820-34010 | Valve Assy, Bimetal |
| 25860 | 25860-73080 | Valve Assy, Vacuum Switching, No.1 |
| 9033903005 | 90339-03005 | Plug, No.1 |
| 9041304005 | 90413-04005 | Way, 3, No.1 (For Front Drive Shift) |
| 9041304008 | 90413-04008 | Way, 3(For Transfer Breather Hose) |
| 9044708085 | 90447-08085 | New Genuine Part |
| 9046400108 | 90464-00108 | New Genuine Part |
| 9099992002 | 90999-92002 | Air Hose (300 mm) |
| 9099992003 | 90999-92003 | Hose, Breather (For Transfer Case) |
| 9165140814 | 91651-40814 | BOLT |
| 9165140814 | 90080-11228 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 17303-73071 | Pipe Sub-Assy, Air, No.1 | Vacuum Piping ([06.1994 - ] (9406- )3YP) |
| 25820-34010 | Valve Assy, Bimetal | Vacuum Piping ([06.1994 - ] (9406- )3YP) |
| 25860-73080 | Valve Assy, Vacuum Switching, No.1 | Vacuum Piping ([06.1994 - ] (9406- )3YP) |
| 90080-11228 | New Genuine Part | Vacuum Piping ([06.1994 - ] (9406- )3YP) |
| 90339-03005 | Plug, No.1 | Vacuum Piping ([06.1994 - ] (9406- )3YP) |
| 90413-04005 | Way, 3, No.1 (For Front Drive Shift) | Vacuum Piping ([06.1994 - ] (9406- )3YP) |
| 90413-04008 | Way, 3(For Transfer Breather Hose) | Vacuum Piping ([06.1994 - ] (9406- )3YP) |
| 90447-08085 | New Genuine Part | Vacuum Piping ([06.1994 - ] (9406- )3YP) |
| 90464-00108 | New Genuine Part | Vacuum Piping ([06.1994 - ] (9406- )3YP) |
| 90925-01021 | Valve, Vacuum Transmitting, No.1 | Vacuum Piping ([06.1994 - ] (9406- )3YP) |
| 90999-92002 | Air Hose (300 mm) | Vacuum Piping ([06.1994 - ] (9406- )3YP) |
| 90999-92003 | Hose, Breather (For Transfer Case) | Vacuum Piping ([06.1994 - ] (9406- )3YP) |
| 91651-40814 | BOLT | Vacuum Piping ([06.1994 - ] (9406- )3YP) |
