Search › Model › YY61

YY61

Toyota TOYOACE-DYNA · 1985 · 3,278 parts · 166 categories

3,278 items

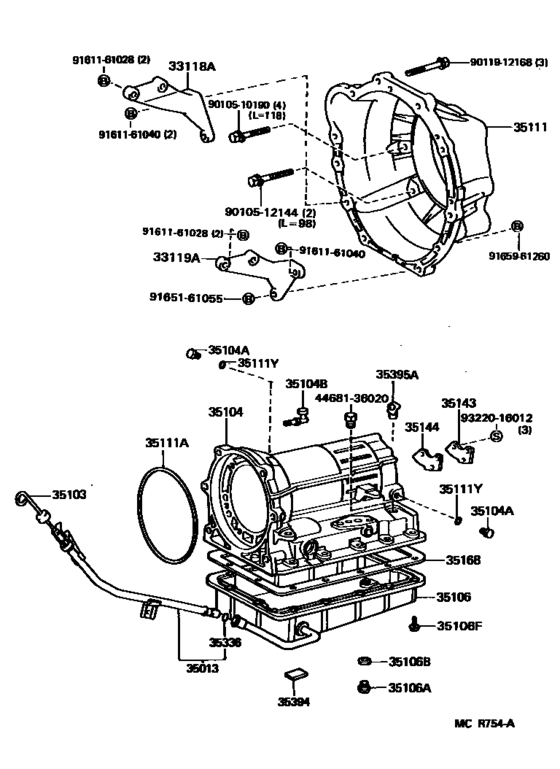

Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM) 36

#	OEM	Part name
33118	33118-28010	Plate, Stiffener, Rh(Mtm)
33118	33118-36031	Plate, Stiffener, Rh(Mtm)
33119	33119-28010	Plate, Stiffener, Lh(Mtm)
33119	33119-36030	Plate, Stiffener, Lh(Mtm)
35013	35013-25010	Tube Sub-Assy, Transmission Oil Filler
35103	35103-25010	Gage Sub-Assy, Transmission Oil Level
35104	35104-26021	Case Sub-Assy, Automatic Transmission
35104	90341-08001	Plug, Transaxle Case, No.1
35104	90930-03108	Plug, Breather, No.1 (Atm)
35106	35106-30061	Pan Sub-Assy, Automatic Transmission Oil
35106	90341-10006	Plug (For Transfer Oil Pan)
35106	90341-10011	Drain Plug (No Type)
35106	35178-30010	Drain Plug Gasket
35106	90119-06117	Bolt (For Automatic Transmission Oil Pan)
35106	90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)
35111	35111-30120	Housing, Automatic Transmission
35111	90301-99054	Ring, O (For Automatic Transmission Housing)
35111	90301-06196	O Ring, Transaxle Case, No.1
35143	35143-22010	Cover, Transmission Case, Rear
35144	35144-28010	Gasket, Transmission Case Rear Cover
35168	35168-22011	Gasket, Automatic Transmission Oil Pan
35336	90301-09173	Ring, O(For Transmission Oil Filler Tube)
35394	35394-30011	Magnet, Oil Cleaner (For Transmission)
35395	35395-40010	Strainer, Governor Oil
4468136020	44681-36020	Plug, Automatic Transmission Case
9010510190	90105-10190	New Genuine Part
9010512144	90105-12144	New Genuine Part
9011912168	90119-12168	Bolt(For Transaxle & Engine Setting)
9161161028	91611-61028	Bolt(For Transaxle Case & Engine Setting)
9161161028	91612-61028	Bolt(For Transaxle Case & Engine Setting)
9161161040	91611-61040	Bolt(For Transaxle Case & Engine Setting)
9161161040	91612-61040	Bolt(For Transmission Case & Engine Setting)
9165161055	91651-61055	New Genuine Part
9165161055	91651-61060	New Genuine Part
9165961260	91659-61260	Bolt(For Transaxle & Engine Setting)
9322016012	93220-16012	SCREW

OEM	Part name	Category
33118-28010	Plate, Stiffener, Rh(Mtm)	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
33118-36031	Plate, Stiffener, Rh(Mtm)	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
33119-28010	Plate, Stiffener, Lh(Mtm)	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
33119-36030	Plate, Stiffener, Lh(Mtm)	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
35013-25010	Tube Sub-Assy, Transmission Oil Filler	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
35103-25010	Gage Sub-Assy, Transmission Oil Level	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
35104-26021	Case Sub-Assy, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
35106-30061	Pan Sub-Assy, Automatic Transmission Oil	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
35111-30120	Housing, Automatic Transmission	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
35143-22010	Cover, Transmission Case, Rear	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
35144-28010	Gasket, Transmission Case Rear Cover	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
35168-22011	Gasket, Automatic Transmission Oil Pan	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
35178-30010	Drain Plug Gasket	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
35394-30011	Magnet, Oil Cleaner (For Transmission)	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
35395-40010	Strainer, Governor Oil	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
44681-36020	Plug, Automatic Transmission Case	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
90105-10190	New Genuine Part	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
90105-12144	New Genuine Part	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
90119-06117	Bolt (For Automatic Transmission Oil Pan)	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
90119-06173	Bolt, Stud (For Automatic Transmission Oil Pan Setting)	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
90119-12168	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
90301-06196	O Ring, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
90301-09173	Ring, O(For Transmission Oil Filler Tube)	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
90301-99054	Ring, O (For Automatic Transmission Housing)	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
90341-08001	Plug, Transaxle Case, No.1	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
90341-10006	Plug (For Transfer Oil Pan)	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
90341-10011	Drain Plug (No Type)	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
90930-03108	Plug, Breather, No.1 (Atm)	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
91611-61028	Bolt(For Transaxle Case & Engine Setting)	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
91611-61040	Bolt(For Transaxle Case & Engine Setting)	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
91612-61028	Bolt(For Transaxle Case & Engine Setting)	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
91612-61040	Bolt(For Transmission Case & Engine Setting)	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
91651-61055	New Genuine Part	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
91651-61060	New Genuine Part	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
91659-61260	Bolt(For Transaxle & Engine Setting)	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
93220-16012	SCREW	Transmission Case & Oil Pan (Atm) ([06.1994 - ] A43D (9406- )ATM)
