Search › Model › YY61

YY61

Toyota TOYOACE-DYNA · 1985 · 3,278 parts · 166 categories

3,278 items

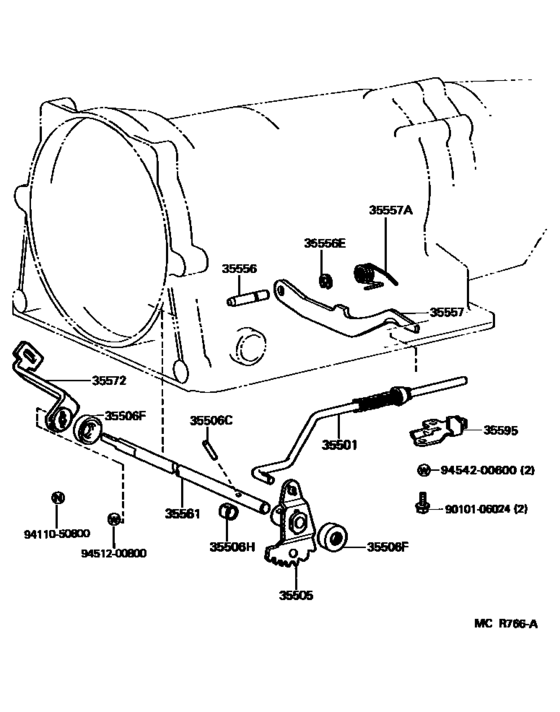

Throttle Link & Valve Lever (Atm) ([06.1994 - ] A43D (9406- )ATM) 23

#	OEM	Part name
35501	35501-26020	Rod Sub-Assy, Parking Lock
35505	35505-22050	Lever Sub-Assy, Manual Valve
35506	90254-04011	Pin, Slotted Spring (For Transfer Manual Valve Lever)
35506	90311-11003	Seal, Oil (For Manual Valve Lever Shaft)
35506	90560-20003	Spacer (For Transfer Manual Valve Lever)
35506	90560-20025	Spacer (For Manual Valve Lever)
35520	35520-30120	Cable Assy, Throttle
35520	90301-09012	Ring, O (For Automatic Transmission Case Plug)
35523	90464-00065	Clamp, Throttle Cable
35556	35556-26010	Shaft, Parking Lock Pawl
35556	90523-08021	Ring, E (For Parking Lock Pawl Shaft)
35557	35557-26020	Pawl, Parking Lock
35557	90508-21001	Spring, Torsion (For Parking Lock Pawl)
35561	35561-40010	Shaft Sub-Assy, Manual Valve Lever
35572	35572-25010	Lever, Transmission Control Shaft, Rh
35595	35595-26010	Bracket, Parking Lock Pawl
9010106024	90101-06024	New Genuine Part
9161160610	91611-60610	Bolt (For Transfer Oil Receiver No.1)
9161160610	91611-B0610	Bolt (For Transfer Oil Receiver No.1)
9411050800	94110-50800	Nut(For Repair Actuator Set)
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9454200600	94542-00600	New Genuine Part
9622110710	96221-10710	Clamp, Throttle Cable, No.2

OEM	Part name	Category
35501-26020	Rod Sub-Assy, Parking Lock	Throttle Link & Valve Lever (Atm) ([06.1994 - ] A43D (9406- )ATM)
35505-22050	Lever Sub-Assy, Manual Valve	Throttle Link & Valve Lever (Atm) ([06.1994 - ] A43D (9406- )ATM)
35520-30120	Cable Assy, Throttle	Throttle Link & Valve Lever (Atm) ([06.1994 - ] A43D (9406- )ATM)
35556-26010	Shaft, Parking Lock Pawl	Throttle Link & Valve Lever (Atm) ([06.1994 - ] A43D (9406- )ATM)
35557-26020	Pawl, Parking Lock	Throttle Link & Valve Lever (Atm) ([06.1994 - ] A43D (9406- )ATM)
35561-40010	Shaft Sub-Assy, Manual Valve Lever	Throttle Link & Valve Lever (Atm) ([06.1994 - ] A43D (9406- )ATM)
35572-25010	Lever, Transmission Control Shaft, Rh	Throttle Link & Valve Lever (Atm) ([06.1994 - ] A43D (9406- )ATM)
35595-26010	Bracket, Parking Lock Pawl	Throttle Link & Valve Lever (Atm) ([06.1994 - ] A43D (9406- )ATM)
90101-06024	New Genuine Part	Throttle Link & Valve Lever (Atm) ([06.1994 - ] A43D (9406- )ATM)
90254-04011	Pin, Slotted Spring (For Transfer Manual Valve Lever)	Throttle Link & Valve Lever (Atm) ([06.1994 - ] A43D (9406- )ATM)
90301-09012	Ring, O (For Automatic Transmission Case Plug)	Throttle Link & Valve Lever (Atm) ([06.1994 - ] A43D (9406- )ATM)
90311-11003	Seal, Oil (For Manual Valve Lever Shaft)	Throttle Link & Valve Lever (Atm) ([06.1994 - ] A43D (9406- )ATM)
90464-00065	Clamp, Throttle Cable	Throttle Link & Valve Lever (Atm) ([06.1994 - ] A43D (9406- )ATM)
90508-21001	Spring, Torsion (For Parking Lock Pawl)	Throttle Link & Valve Lever (Atm) ([06.1994 - ] A43D (9406- )ATM)
90523-08021	Ring, E (For Parking Lock Pawl Shaft)	Throttle Link & Valve Lever (Atm) ([06.1994 - ] A43D (9406- )ATM)
90560-20003	Spacer (For Transfer Manual Valve Lever)	Throttle Link & Valve Lever (Atm) ([06.1994 - ] A43D (9406- )ATM)
90560-20025	Spacer (For Manual Valve Lever)	Throttle Link & Valve Lever (Atm) ([06.1994 - ] A43D (9406- )ATM)
91611-60610	Bolt (For Transfer Oil Receiver No.1)	Throttle Link & Valve Lever (Atm) ([06.1994 - ] A43D (9406- )ATM)
91611-B0610	Bolt (For Transfer Oil Receiver No.1)	Throttle Link & Valve Lever (Atm) ([06.1994 - ] A43D (9406- )ATM)
94110-50800	Nut(For Repair Actuator Set)	Throttle Link & Valve Lever (Atm) ([06.1994 - ] A43D (9406- )ATM)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Throttle Link & Valve Lever (Atm) ([06.1994 - ] A43D (9406- )ATM)
94542-00600	New Genuine Part	Throttle Link & Valve Lever (Atm) ([06.1994 - ] A43D (9406- )ATM)
96221-10710	Clamp, Throttle Cable, No.2	Throttle Link & Valve Lever (Atm) ([06.1994 - ] A43D (9406- )ATM)
